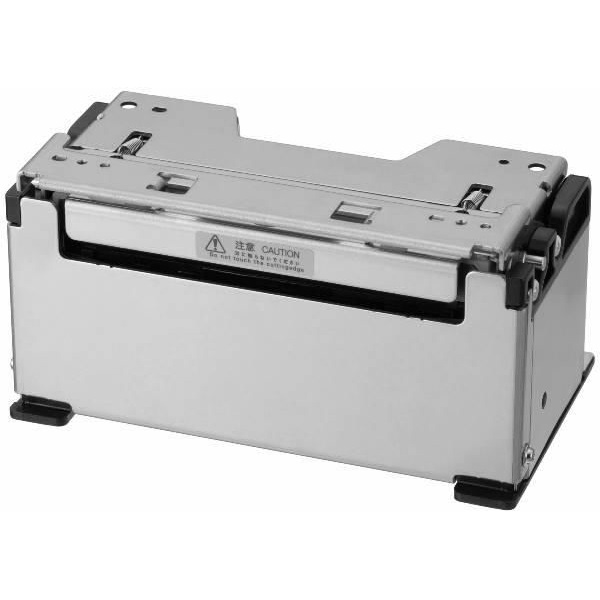

CAPM

Ürün Tanımı

• Max. printing speed: 300mm/sec
• Build in auto paper cutter
• Head open design for easy paper operation
• Heavy-duty : 200km, 2mil. cuts
• Wide operating temperature : -20°C to 60°C

Model		CAPM347
		Easy paper operation model	Loading model
		Regular thermal paper	Regular thermal paper	Thick thermal paper
*1 Under specified condition. *2 Use recommended thermal papers.
Printing	Method	Thermal line dot printing
	Number of dots/line	640
	Resolution (dots/mm)	8
	Paper width (mm)	58 / 60 / 80 / 83
	Printing width (mm)	54 / 56 / 72 / 80
	Speed (mm/sec) max	300*1	300*1	280*1
Detection	Head temperature	By thermistor
	Head position	By mechanical switch
	Out of paper	By photo interrupter
	Mark position	By photo interrupter*1
	Cutter home position	By photo interrupter
Power supply (V)	Operation voltage (Vdd)	2.7 to 3.6 / 4.75 to 5.25
	Operation voltage (Vp)	21.6 to 26.4
Peak current (A)	Head / Motor / Cutter	5.6 (26.4V / 144dots) / 1.2 / 1.1
Auto Cutter	Method	Slide type
	Paper thickness (μm)*1	54 to 90*2	54 to 90*2	100 to 150*2
	Cutting type	Full cut / Partial cut (Leave center point)
Service Life	Pulse activation (pulse)	200 million	200 million	100 million
	Abrasion resistance (km)	200*2	200*2	100*2
	Paper cutting (cut)	2,000,000*2	2,000,000*2	1,000,000*2
Operating temperature (˚C)		-20 to 60*1	-20 to 60*1	-20 to 60*1
Dimensions (W×D×H mm)		110.0 × 61.0 × 53.4	110.0 × 61.0 × 55.9
Mass (g)		Approx. 500
