LTE Cat 1 with 2G / 3G Fallback and Voice Support
Optimized for M2M IoT Solutions

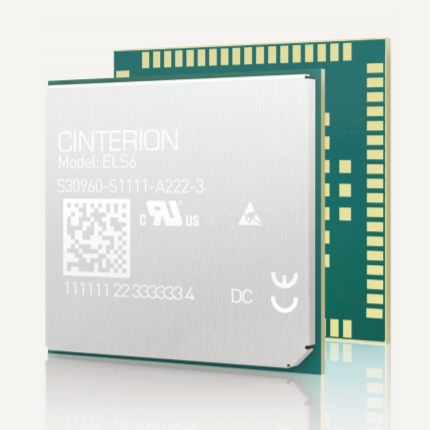

Gemalto’s Cinterion® ELS61 wireless module delivers highly efficient Cat 1 LTE connectivity for M2M IoT solutions offering seamless fall back to 2G and 3G networks as well as full VoLTE support on AT&T. The best in class solution enables M2M optimized speeds of 10Mbit/s download and 5Mbit/s uplink making it ideal for the vast number of M2M and industrial IoT applications that are not dependent on speed but that require the longevity of LTE networks, while still providing 3G and 2G connectivity to ensure complete population and geographic coverage as LTE rolls out. Applications well suited to the ELS61 solution include metering, tracking and tracing, remote surveillance, connected signs, fleet management and mHealth solutions.

  • Region: NORAM, EMEA, Australia
  • LTE (FDD) 3GPP Rel. 9+
  • LTE-Bands:
    ELS61-US: 2, 4, 5, 12 (additional 3G fallback)
    ELS61-E: 1, 3, 8, 20, 28 (additional 3G and 2G fallback)
    ELS61-AU: 3, 5, 8, 28 (additional 3G fallback)
  • LTE Cat.1, DL/UL max: 10.2 Mbps / 5.2 Mbps
  • Voice support on Cinterion® ELS61-USA (AT&T, VoLTE and CSFB) and ELS61-E (CSFB)
  • Java™ ME 3.2 embedded
  • IP services
  • Dimension: 27.6 x 25.4 x 2.2 mm
  • Operating temperature Range -40°C to +85°
  • USB Interface features a composite mode, compliant to Windows, Linux and Mac
  • Incremental Firmware update via application and Over The Air (OTA)

Ürün Detayları

  • Radio Technology: 2G, 3G, 4G
  • Special Features: GPIO's, JAVA
