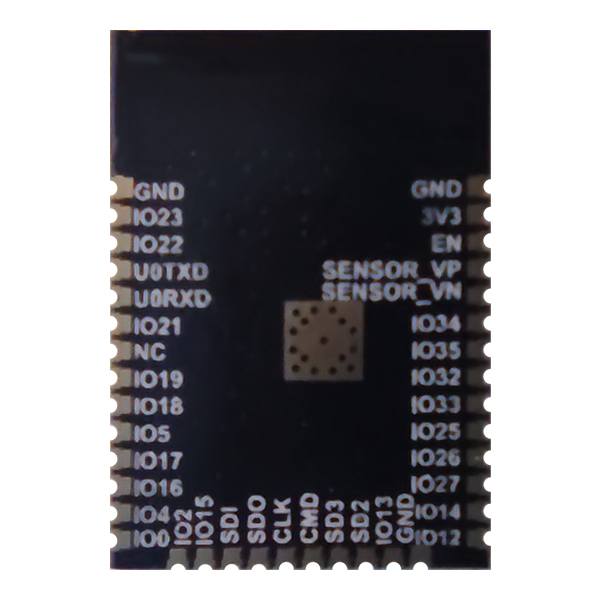

ESP32-SL

Ürün Tanımı

Overview

ESP32-SL is a general-purpose Wi-Fi+BT+BLE MCU module, with the industry's most competitive package size and ultra-low energy consumption technology, the size is only 18*25.5*2.8mm.

ESP32-SL can be widely used in various IoT occasions, suitable for home automation, industrial wireless control, baby monitors, wearable electronic products, wireless position sensing devices, wireless positioning system signals, and other IoT applications. It is an IoT application Ideal solution.

The core of this module is the ESP32-S0WD chip, which is scalable and adaptive. The user can cut off the power of the CPU and use the low power consumption to assist the processor to continuously monitor the status changes of peripherals or whether certain analog quantities exceed the threshold. ESP32-SL also integrates a wealth of peripherals, including capacitive touch sensors, Hall sensors, low-noise sensor amplifiers, SD card interface, Ethernet interface, high-speed SDIO/SPI, UART, I2S and I2C. The ESP32-SL module is developed by Encore Technology. The core processor ESP32 of the module has a built-in low-power Xtensa®32-bit LX6 MCU, and the main frequency supports 80 MHz and 160 MHz.

ESP32-SL adopts SMD package, which can realize the rapid production of products through standard SMT equipment, providing customers with highly reliable connection methods, especially suitable for modern production methods of automation, large-scale, and low cost, and is convenient to apply to various IoT hardware Terminal occasions

Features

• Complete 802.11b/g/n Wi-Fi+BT+BLE SOC module
• Using low-power single-core 32-bit CPU, can be used as an application processor, the main frequency is up to 160MHz, the computing power is 200 MIPS, support RTOS
• Built-in 520 KB SRAM
• Support UART/SPI/SDIO/I2C/PWM/I2S/IR/ADC/DAC
• SMD-38 packaging
• Support OpenOCD debug interface
• Support multiple sleep modes, the minimum sleep current is less than 5uA
• Embedded Lwip protocol stack and FreeRTOS
• Support STA/AP/STA+AP work mode
• Smart Config (APP)/AirKiss (WeChat) one-click distribution network supporting Android and IOS
• Support serial local upgrade and remote firmware upgrade (FOTA)
• General AT command can be used quickly
• Support secondary development, integrated Windows, Linux development environment
