LP360™
BREAKTHROUGH LOW-PROFILE CONNECTIVITY
Fischer LP360™ is a range of versatile, plug and use
connectivity solutions that includes connectors, cable assemblies and active
devices to maximize usability, efficiency and performance. The connectors
have no key code, providing 360° mating freedom for optimized
cable management. Membrane-sealed contacts ensure a fully cleanable connector
(both plug and receptacle). Low profile allows for easy integration in any
environment. Discover our Tests & Proofs videos.
The Fischer LP360™ 7-pin connector in metal, launched in June 2018, was extended with nine new products in September 2019 to provide added versatility for a wide range of applications and markets.
The new connectivity solutions are
low-profile, rugged and durable, making use of the Fischer LP360™ technological
innovations, i.e. 360° mating freedom and sealed,
blind-mate and non-magnetic quick-release locking:

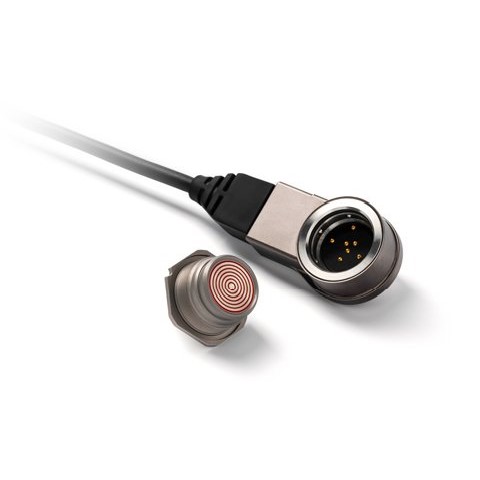

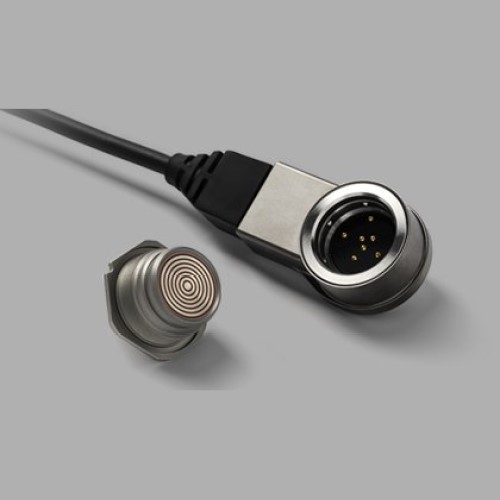

- Size 14, 7 signal & power contacts with
cabled receptacle (1) and panel plug (2), and
new active devices: USB 2.0 adaptor (3), LED (4) and Rugged
Flash Drive (5)

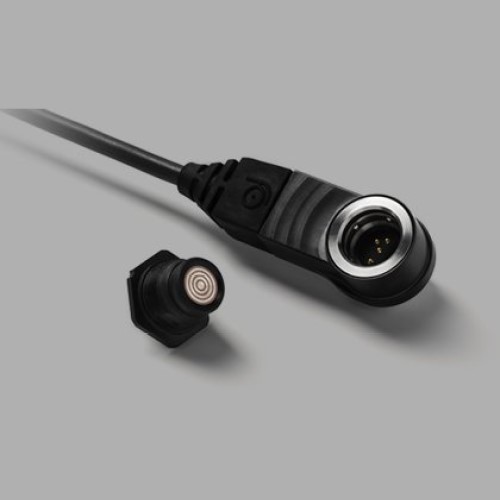

- Size 08 with 4 signal & power contacts in
plastic (high-end composite based on PEEK) with cabled plug (6) and

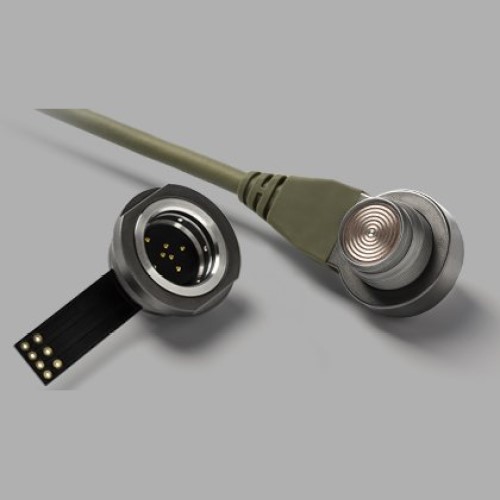

panel receptacle (7), and in metal with panel receptacle (8) and
panel plug (9).
ACTIVE DEVICES
DEFENSE
Defense applications
Rugged, compact connectors with 360°
mating “freedom” and easy cleaning. The LP360™ lightens the load for soldiers
on a mission and maximizes usability, efficiency and performance of military
equipment.
- 4-7 signal & power contacts, up to 24AWG, USB
2.0 and Ethernet
- 360° mating with sealed, blind-mate and
non-magnetic quick-release locking mechanism – easy and quick to mate and
unmate
- Dust- and sand-proof, EMI shielding on metal
connectors
- 10,000 mating cycles (metal connectors)/5,000 mating cycles (plastic connectors)
SECURITY
Security applications
Wearable, low-profile connectors for easy
and seamless integration. The LP360™ keeps security forces agile while staying
connected. Real-time information for agents on patrol ensuring faster and safer
mission execution.
- 360° mating, no key code
- IP68 sealed to 20m/24h (metal connectors) / IP67
sealed mated and unmated (plastic connectors)
- Wearable solutions for mobile connectivity,
reduced weight & load, easy handling & cleaning
- 10,000 mating cycles (metal connectors) / 5,000
mating cycles (plastic connectors)
MEDICAL
Medical applications
The LP360™ is a lightweight, low-profile
connector offering easy handling and easy cleaning while maximizing usability
and performance of medical equipment. Real-time information sharing about
patients or treatments, improving therapeutic efficiency.
- Fully cleanable, both plug and receptacle
- Size 14 with 7 signal & power contacts, USB
2.0 and Ethernet
- Size 08 with 4 signal & power contacts –
connectors are available in metal and plastic (high-end composite based on
PEEK)
- Robust design up to 10,000 mating cycles (metal
connectors) / 5,000 mating cycles (plastic connectors)
INDUSTRIAL & CIVIL ENGINEERING
Industrial applications
By sharing information about the speed and
effectiveness of operations, the LP360™ enables safer and more reliable
protective personal equipment as well as faster decision making.
- Resistant to shock, vibration, torque and extreme
temperatures
- 360° mating with no key code
- IP68 sealed to 20m/24h (metal connectors) / IP67
sealed mated and unmated (plastic connectors)
- EMI shielding on metal connectors
TECHNOLOGY INNOVATION AWARDS
The Fischer Freedom™ technology platform continues to gain international peer recognition: winning four awards in one year (web news, July 18, 2019). From left to right: 2018 Innovators Award, 2018 LEAP Award, 2019 Electronics Industry Award, 2019 Electrons d'Or.
DISCOVER OUR BREAKTHROUGH PLUG & USE CONNECTIVITY SOLUTIONS
The Fischer Freedom™ Series is a versatile and modular technology
platform and innovation enabler in connectivity and application design that
maximizes efficiency, usability and performance. It offers easy mating, easy
cleaning and easy integration into fixed and wearable devices for any market.
There’s a choice of easy cable assembly or direct integration into application
housing.
Robust and sealed, its connectivity solutions withstand extreme
conditions, including corrosion, vibration, shock and high temperatures (see
exact technical specifications for each product). They meet rigorous
electrical, mechanical and environmental product qualification and testing
requirements in compliance with relevant international industry and military
standards like IEC, EIA, MIL-STD-202, MIL-STD-810.
With its
flagship plug & use LP360™ connector, Fischer Freedom™ covers connectors,
cable assemblies and active solutions with various features, contact
configurations, sizes, materials, and active devices.
The
versatile connectivity solutions allow design engineers to add more
technology and functionality into electronic ecosystems, particularly in
terms of SWaP (Size, Weight and Power) requirements, cable
management optimization, network integration, and wearable technology.
They are ideal for fixed or wearable ecosystems and cable-free devices in markets such as: defense & security, medical, instrumentation, industrial and civil engineering, robotics, wearables, IoT, etc.
Key features and benefits
Easy Mating
- No key code: 360° mating freedom & optimized cable management
- Seales, blind-mate and non-magnetic quick-release locking mechanism
- Emergency release unlocking (no latching)
Easy Cleaning
- Membrane-sealed contacts, fully cleanable (plug and receptacle)
- Surface contacts (no female cavity or protruding male contacts)
- IP68 sealed to 20m/24h: connector size 14, 7 contacts, metal
(IP67 sealed: connector size 08, 4 contacts, plastic)
Easy Integration
- Low profile, right-angled plug
- (Receptacle) Wearable integration OR panel mounted
- (Plug) Easy cable assembly OR direct integration into application/device housing
Optimized Cable Management
The
Fischer Freedom™ Series optimizes cable management with an extremely reliable
connectivity ecosystem.
The Fischer Freedom™ technology platform provides optimized cable management that is useful in a large variety of applications and markets. Thanks to the platform’s versatility, it enables design engineers to maximize the usability, operability and functionality of their devices, whether wearable or fixed, and of their entire networks and ecosystems.
Example of shared data and power bus in wearables/IoT
