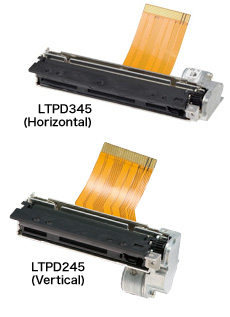

LTPD245/345
.jpg "LTPD245/345")
Ürün Tanımı
- High performance in compact design
- Max. printing speed (LTPD245) : 100mm/sec
- Platen latch function
- Label printing *Under specific conditions only.
| Model | LTPD245 | LTPD345 | |
|---|---|---|---|
| *1 Use recommended thermal papers. *2 Excluding protrusion. *3 -30˚C to 70˚C:supported by designated conditions only. | |||
| Printing | Method | Thermal line dot printing | |
| Number of dots/line | 384 | 576 | |
| Resolution (dots/mm) | 8 | ||
| Paper width (mm) | 58 | 80 | |
| Printing width (mm) | 48 | 72 | |
| Speed (mm/sec) max | 100 | 80 | |
| Paper path | Curved | ||
| Detection | Head temperature | By thermistor | |
| Platen position | By mechanical switch | ||
| Out of paper | By photo interrupter | ||
| Power supply (V) | Operation voltage (Vdd) | 2.7 to 3.6 / 4.75 to 5.25 | |
| Operation voltage (Vp) | 4.75 to 9.5 | ||
| Peak current (A) | Head | 3.66 (9.5V / 64dots) / 5.49 (9.5V / 96dots) | 3.60 (9.5V / 64dots) / 5.40 (9.5V / 96dots) |
| Motor | 0.6 | ||
| Service Life | Pulse activation (pulse) | 100 million | |
| Abrasion resistance (km) | 50*1 | ||
| Operating temperature (˚C) | -10 to 50*1 *3 | ||
| Dimensions (W×D×H mm) | Horizontal | 69.0 × 30.0 × 15.0*2 | 91.0 × 30.0 × 15.0*2 |
| Vertical | 69.0 × 15.0 × 30.0*2 | 91.0 × 15.0 × 30.0*2 | |
| Mass (g) | Approx. 40 | Approx. 58 | |
Interface
| Model | IFD501-01UK | IFD501-01SK | |
|---|---|---|---|
| CPU | PTD50P01 | ||
| Thermal printer | LTPD245, LTPD345, CAPD245, CAPD345 | ||
| Operating voltage (V) | Vp: 4.75 to 9.5 | ||
| Character matrix (H×W dots) | 16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 | ||
| Character type | Extended graphics character set | Yes | Yes |
| Katakana character set | Yes | Yes | |
| Codepage 1252 | Yes | Yes | |
| Optional | Yes | Yes | |
| Downloaded character | Yes | Yes | |
| User-defined character | Yes | Yes | |
| JIS 1 & 2 level kanji | Yes | Yes | |
| Communication interface | USB (2.0) | Serial (RS-232C) | |
| Dimensions (W×D×H mm) | 69.0 × 50.0 × 14.0 | ||
| Software*6 | Printer driver, Linux | ||
CPU
| Model | PTD50P01 |
|---|---|
| *5 CG ROM: Japanese *6 Please see "Associated software tool" for details. | |
| Thermal printer | LTPD245, LTPD345, CAPD245, CAPD345 |
| Package form | 120pin QFP |
| Operating voltage (V) | Vp: 4.75 to 9.5, Vcc: 3.0 to 3.6 |
| Input frequency (MHz) | 12 +/- 0.01% |
| Configuration | C-MOS LSI |
| Communication interface | Parallel, Serial, USB |
| Character type | Extended graphics character set, Codepage 1252 Other characters is available with CGs*5 or external ROM |
| Character matrix (H×W dots) | 16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
| Dimensions (W×D×H mm) | 16.0 × 16.0 × 1.7 |
| Software*6 | Printer driver, Linux® |
