Ürün Tanımı

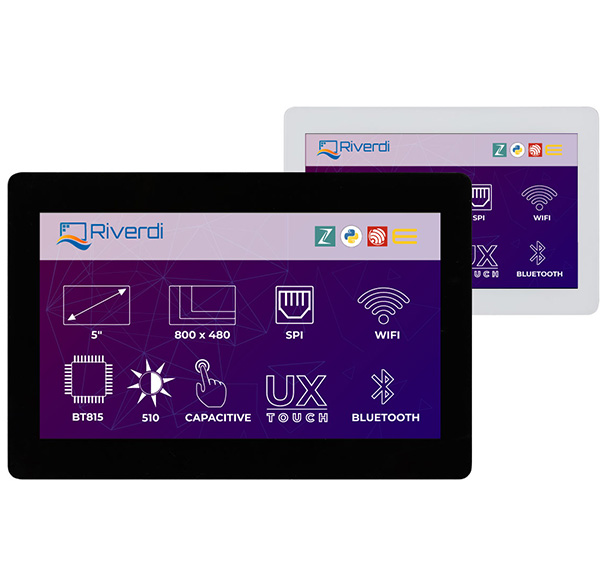

RiTFT-50-IOT-UX (PN RVT50UQENWC0x) is the first ever IoT display on the market. A high-quality 5’’capacitive screen Riverdi display that is Python programmable, with integrated WiFi and Bluetooth® (thanks to the ESP32 microcontroller onboard), and low-power consumption. The perfect solution for smart homes and industry 4.0.

The 800×480 resolution provides crisp and clear colors, while the screen is driven by the powerful BT815 graphics controller

First IoT display on the market

This is the first IoT display on the market that solves the problem of wireless communication and control. Thanks to the ESP32 microcontroller on board it’s easy to send and receive data over WiFi and Bluetooth®, with no need for a host processor.

Furthermore, the display is Python programmable and has a Zerynth Studio license onboard. You can simply take it out of the box, load one of many examples from the Zerynth library, and have you IoT display up and running.

And if you decide to write the code from scratch, with Python, you’ll be done in no time.

Python programmable thanks to Zerynth

RiTFT-50-IOT-UX can be programmed in Python, thanks to Zerynth. Python is an easy to learn, easy to use, interpreted language, that suits fast-paced IoT projects this display is intended for.

Zerynth offers tons of useful libraries and examples – for every knowledge level. For example, one of their tutorials teaches how to connect a device to the Cloud, with only 15 lines of code in Python. With it, you’ll be sending temperature data from a sensor to the Cloud in minutes.

There is a Zerynth Studio license onboard so that you can start programming the display right out of the box.

Espressif’s ESP32 onboard

The ESP32 microcontroller, one of the most popular pieces of any IoT project, is located on this display. Thanks to it’s integrated Wifi and Bluetooth®, you can easily connect your display to the Cloud, and send and receive data.

Espressif’s ESP32 microcontroller was designed for low-power IoT applications and wearable electronics. That is why it can perform as a complete standalone system, reducing communication stack overhead on the main application processor.

Two MikroBUS slots – thousands of possibilities

RiTFT-50-IOT-UX has two MikroBUS slots onboard, making it easily expandable with hundreds of MikroElektronika Click Boards.

Each Click Board carries a certain functionality, that can be added to the display. You can choose from temperature and humidity sensors, voltage regulators, RF transceivers, motor control, button, switches, text to speech converters, and UV sensors.

By adding Click Boards to the RiTFT-50-IOT-UX display you can make it tailor-made for you and your project.


A powerful graphics controller

If your project requires a more complex execution FTDI graphic controllers are the right choice. The FT8xx controller on this display is a part of FTDI’s family of advanced graphic controllers. Riverdi displays with FT812 graphic controllers feature advanced EVE (Embedded Video Engine) user interface created by FTDI, that successfully combine the capacities of processing images, sound, and information from the touch panel.

Thanks to Zerynth’s BT81x library, building a user interface in Python is not a problem. Actually, it can be done in minutes.
You can access the library here.

Touch Screen.

Reacts to the slightest touch

TFT display module with a capacitive touchscreen. These types of screens are extremely touch-sensitive and allow for clear and bright images. We recommend a capacitive touchscreen display if your application needs multi-touch, gestures, and high-precision. Capacitive touchscreens react to the slightest touch, and no pressure is needed for detection.


Sleek design without any holes in the housing

A uxTouch display is a specially designed LCD TFT display which has a Projected Capacitive Touch (PTC). They are the perfect choice for your project if you intend to have an interactive design and technology, thanks to their absolute flat design and multi-touch feature.

As you can see they feature a modern and sleek design without any holes in the housing.

On the technical side, they are a great option for industrial spaces, since there is no dirt accumulation possible. They also feature chemically strengthened glass, which has increased durability, thanks to the process of ion-exchange. They are easy to assemble, easy to clean and easy to implement into your design.

SKU Color
RVT50UQENWC01 UxTouch Black
RVT50UQENWC04 UxTouch White

Ürün Detayları

  • Controller: None
  • Interface: SPI/QSPI
  • Resolution: 800x480
  • Size: 5"
  • Touch Screen: Capacitive

Ürün Dosyaları
