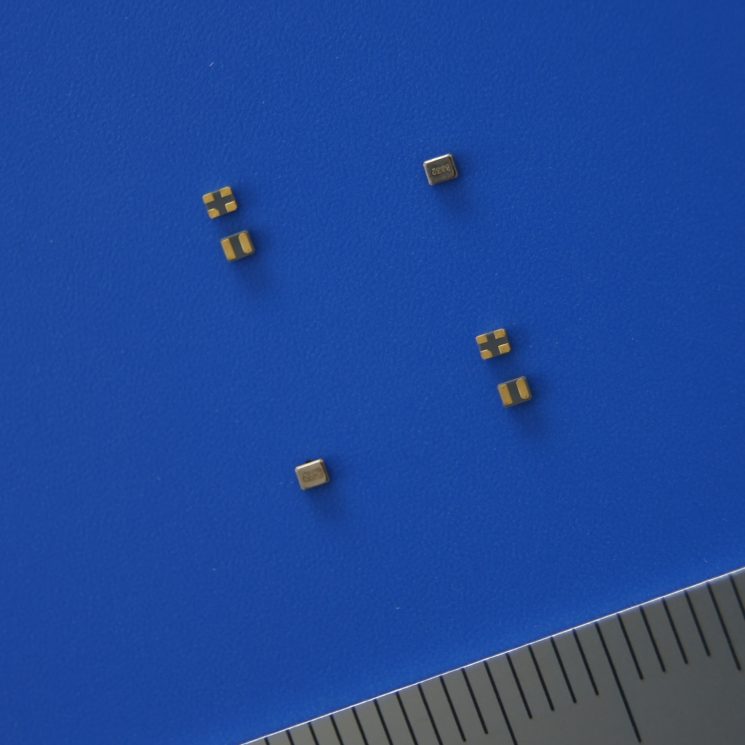

• SC-12S

Ürün Tanımı


  • Ultra small size type (1.2×1.0x0.5mm max.).
  • SMD type suitable for high density surface mounting.
  • Excellent shock and heat resistance.
  • Pb-free.
  • Complies with EU RoHS directive
  • A crystal resonator processed by high reliable photo-lithographic technology inside.


2 terminals4 terminals
Nominal Frequencyf_nom32.768kHz
Frequency Tolerancef_tol±20×10 -6

※Please contact us for inquiries regarding available tolerance.

Turnover TemperatureTi+ 25±5℃
Parabolic CoefficientB(-0.036±10%)×10 -6 /℃ 2
Load CapacitanceCL6.0pF, 7.0pF, 9.0pF, 12.5pF

※Please contact us for inquiries regarding available CL.

Motional Resistance(ESR)R190kΩ Max.
Absolute Maximum Drive LevelDLmax0.3μW Max.
Drive LevelDL0.1μW typ.
Shunt CapacitanceC  01.4pF typ
Frequency Ageingf_age±5×10 -6 /Year
Operating TemperatureT_use-40℃〜+ 85℃
Storage TemperatureT_stg-55℃〜+ 125℃

Ürün Detayları

  • Area (mm2): 1,2
  • Frequency Tolerance: ±20×10 -6
  • Height (mm): 0,5
  • Load Capacitance: 6.0pF, 7.0pF, 9.0pF, 12.5pF
  • Nominal Frequency: 32.768kHz
  • Type: SMD Type
