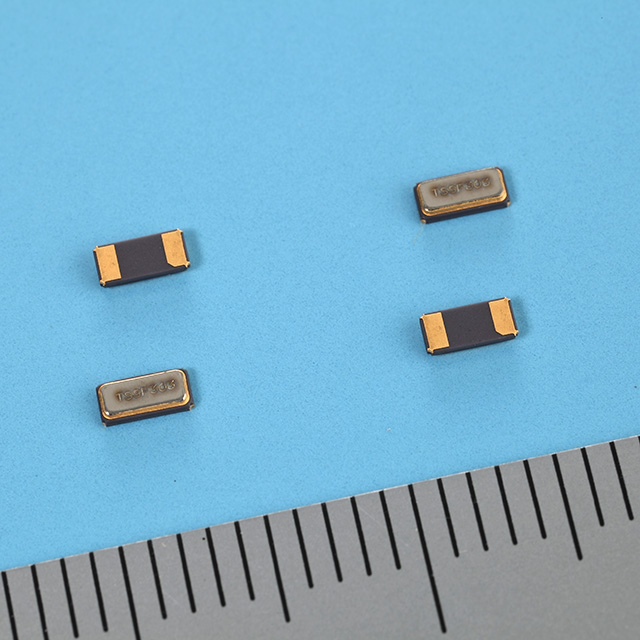

• SC-32P

Ürün Tanımı


  • Suitable for microcomputer with Low ESR(R1=50kΩmax).
  • SMD type suitable for high density surface mounting.
  • Excellent shock and heat resistance.
  • Pb-free.
  • Complies with EU RoHS directive
  • A crystal resonator processed by high reliable photo-lithographic technology inside.


Nominal Frequencyf_nom32.768kHz
Frequency Tolerancef_tol±5 x 10-6, ±10 x 10-6, ±20 x 10-6

※Please contact us for inquiries regarding available tolerance.

Turnover TemperatureTi+25±5ºC
Parabolic CoefficientB(−0.033±10%) x 10-6/ºC2
Load CapacitanceCL6.0pF, 7.0pF, 9.0pF, 12.5pF

※Please contact us for inquiries regarding available CL.

Motional Resistance(ESR)R150kΩ Max.
Absolute Maximum Drive LevelDLmax.1.0μW Max.
Drive LevelDL0.1μW typ.
Shunt Capacitance01.0pF typ.
Frequency Ageingf_age±3 x 10-6/Year
Operating TemperatureT_use−40ºC to +85ºC
Storage TemperatureT_stg−55ºC to +125ºC

Ürün Detayları

  • Area (mm2): 5,12
  • Frequency Tolerance: ±5 x 10-6, ±10 x 10-6, ±20 x 10-6
  • Height (mm): 0,75
  • Load Capacitance: 6.0pF, 7.0pF, 9.0pF, 12.5pF
  • Nominal Frequency: 32.768kHz
  • Type: SMD Type
