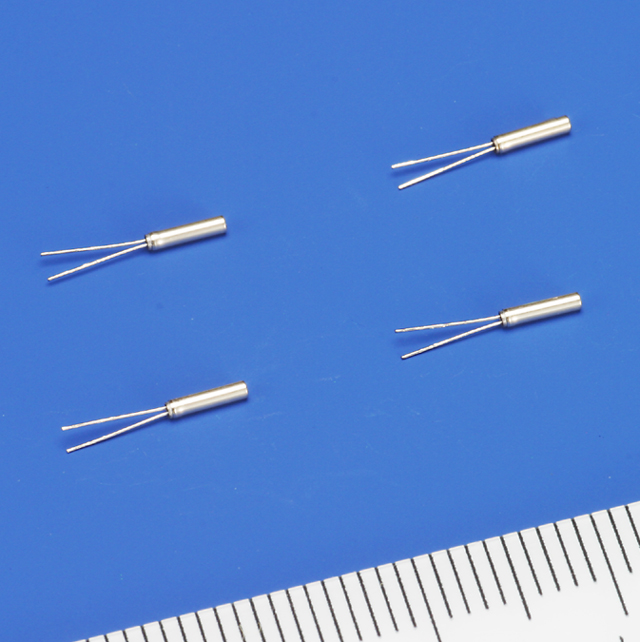

• VT-120-F

Ürün Tanımı

FEATURES

  • Compact 1.2Φ tubular package.
  • Photolithographic process.
  • Excellent low drive level characteristics.
  • Pb-free.
  • Complies with RoHS directive

SPECIFICATIONS

ItemSymbolSpecifications
Nominal Frequencyf_nom32.768kHz
Frequency Tolerancef_tol±5 x 10-6, ±10 x 10-6, ±20 x 10-6

※Please contact us for inquiries regarding available tolerance.

Turnover TemperatureTi+25±5ºC
Parabolic CoefficientB(−0.035±10%) x 10-6/ºC2
Load CapacitanceCL6.0pF, 7.0pF, 9.0pF, 12.5pF

※Please contact us for inquiries regarding available CL.

Motional Resistance(ESR)R150kΩ max.
Absolute Maximum Drive LevelDLmax.1.0μW
Drive LevelDL0.1μW
Shunt Capacitance00.8pF typ.
Frequency Ageingf_age±3 x 10-6
Operating TemperatureT_use−20ºC to +60ºC
Storage TemperatureT_stg−30ºC to +70ºC



Ürün Detayları

  • Area (mm2): Φ1.2 x 4.7
  • Frequency Tolerance: ±5 x 10-6, ±10 x 10-6, ±20 x 10-6
  • Height (mm): --
  • Load Capacitance: 6.0pF to 12.5pF
  • Nominal Frequency: 32.768kHz
  • Type: Cylinder Type
