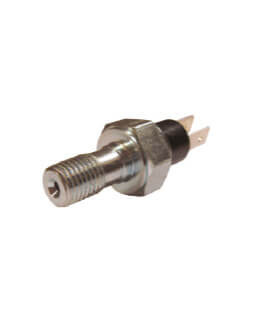

1000 Series

Ürün Tanımı

These pressure switches are durable, reliable electromechanical gauge pressure on/off switches that are available with either single pole single throw (SPST) normally open or normally closed circuitry, or single pole double throw (SPDT) circuitry. Their high proof pressure and burst pressure ratings can allow for use in many rugged applications that require the making or breaking of an electrical connection in response to a pressure change of the system media.

FEATURES

• Pressure switching set point range: 3.5 psi to 4500 psi

• Proof pressure: from 500 psi up to 10,000 psi

• Burst pressure: from 1250 psi up to 20,000 psi

• Life cycle rating up to 2 million

• IP67 sealing rating4

• Operating temperature: -40 °C to 120 °C [-40 °F to 248 °F]

• Hysteresis option5

• More than 15 pressure port options and over 30 electrical terminations

• Plated steel, brass or stainless steel options3

• Switching point accuracy up to ±2 %

POTENTIAL APPLICATIONS

• Agricultural machinery • Heavy duty construction machinery and trucks • Lawn & garden machinery • Marine vessels • Material handling machinery • Railway • CNC machines • Compressors/boilers • Fracking equipment • Food & beverage equipment • Generators • HVAC/R equipment • Mud pumps • Pneumatic equipment • Presses/punches • Pressure washers • Trash compactors • Water pumps & jet cutting machines
