2J0B04-C884G

  • 2J0B04-C884G
Satın Al Teklif Talep listenize ekleyin

Ürün Tanımı

2J

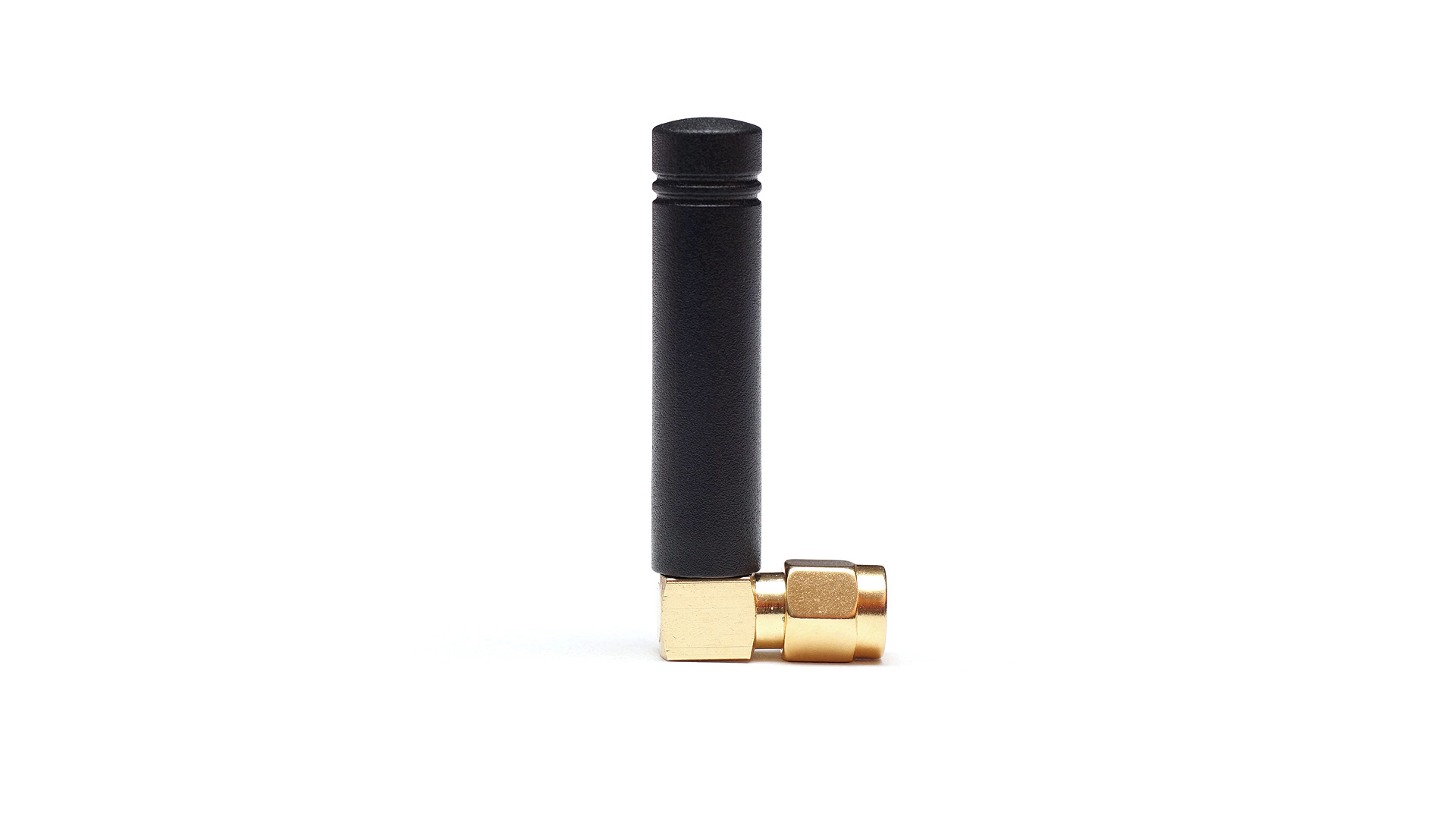

Connector Mount,Low Profile,Ground Plane Dependent,Right-Angle Connector

CELLULAR
Standards2G and 3G
Frequency824-960, 1710-2170
VSWR~2.2:1, ~2.4:1
Efficiency (%)~70.6, ~56.4
Peak Gain (dBi)~2.9, ~1.8
PolarisationLinear
Max. Input Power (W)25

Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 44 x 19.1 × 9
  • Frequency1: 3G CELL/2G
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Connector Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
