Ürün Tanımı

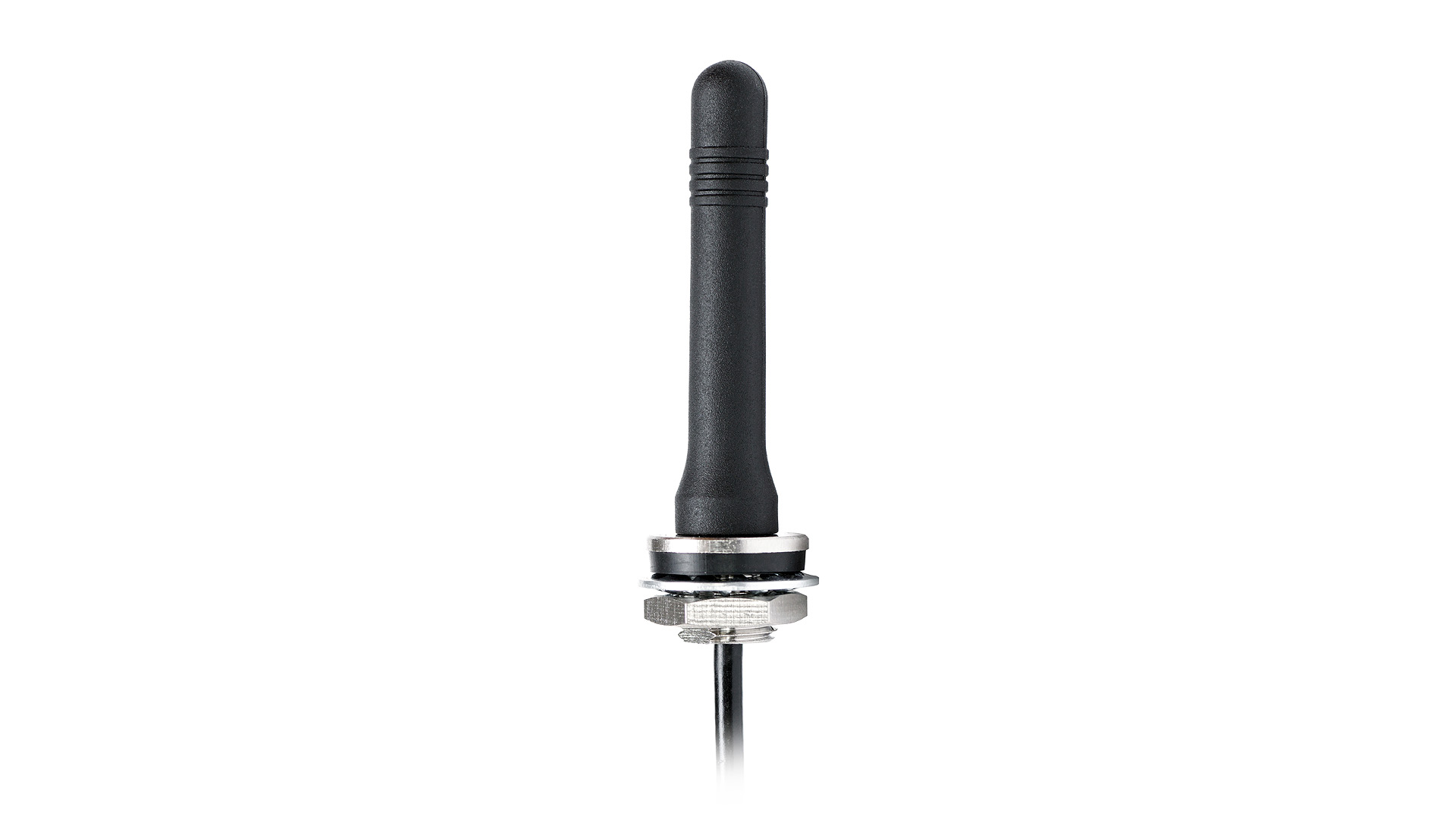

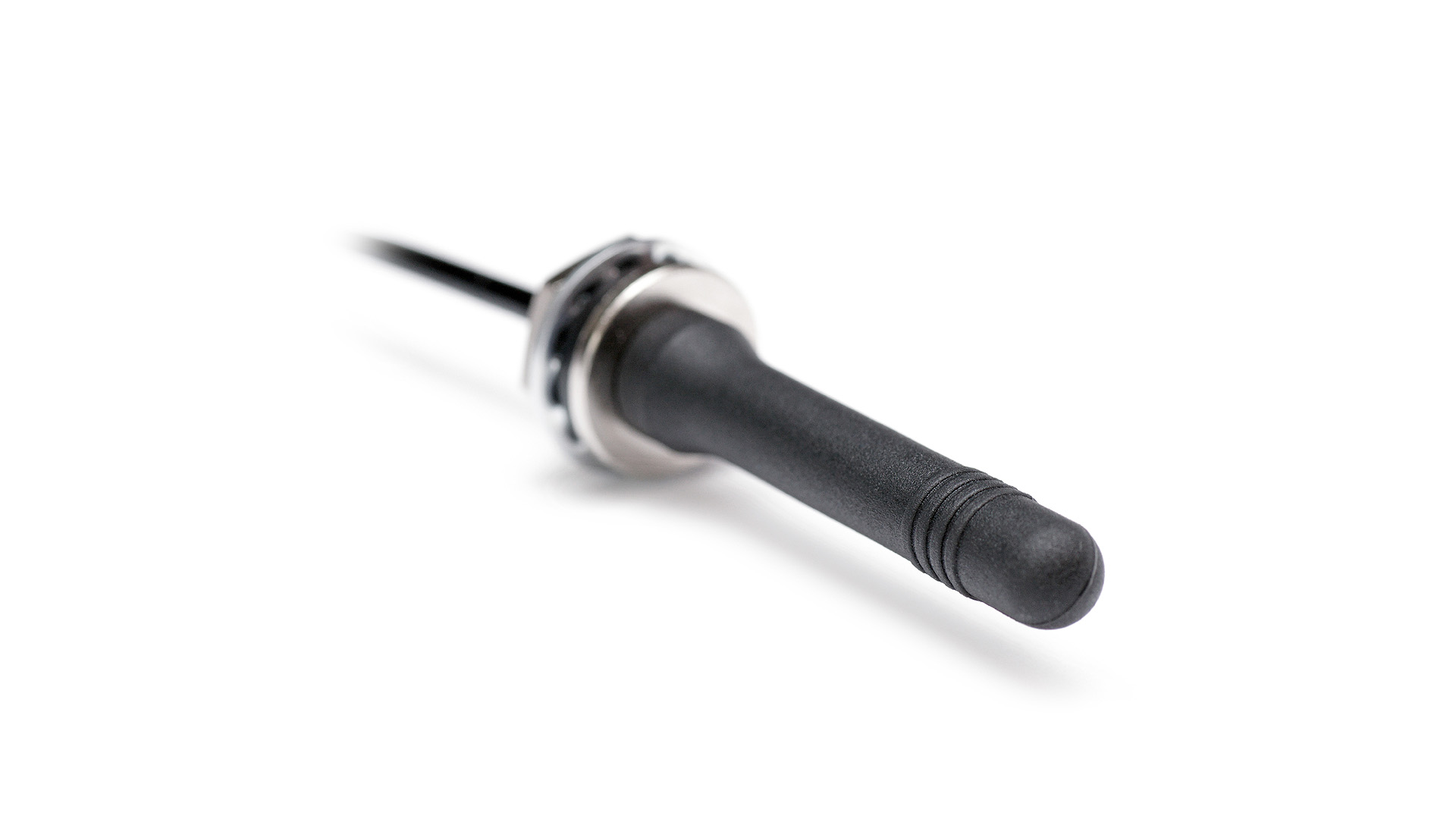

Low Profile, Ground Plane Dependent, Screw Mount

868 MHz ISM
StandardsZigBee, ISM, SIGFOX, LoRa
Frequency863-870
VSWR~1.4:1
Efficiency (%)~37.0
Peak Gain (dBi)~-0.3
Impendance (Ohm)50
PolarisationLinear
Max. Input Power (W)25


Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 50 x Ø16
  • Frequency1: 868 MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: EVET
  • Mounting: Screw Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: EVET
