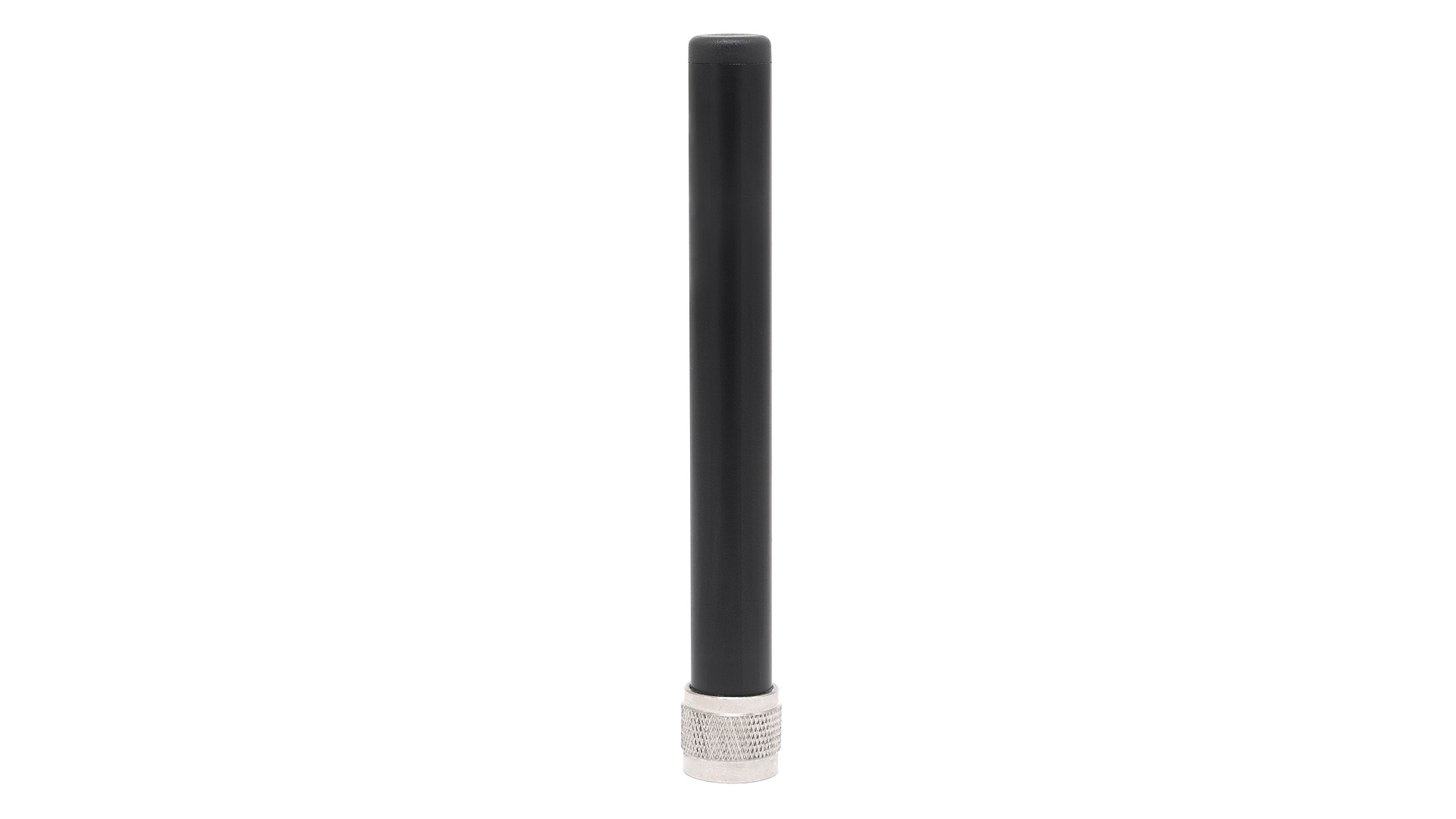

2J2202-C315N

  • 2J2202-C315N
Satın Al Teklif Talep Listenize Ekleyin

Ürün Tanımı

2J

High Gain,Ground Plane Independent,Connector Mount

2.4/5.0 GHz ISM
StandardsWiFi, BT, ZigBee, ISM
Frequency2410-2490, 4920-5925
VSWR~1.4:1, ~1.7:1
Efficiency (%)~75.8, ~84.5
Peak Gain (dBi)~4.1, ~3.9
Impendance (Ohm)50
PolarisationLinear
Max. Input Power (W)25

Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: EVET
  • Certificates: -
  • Dimensions (mm): Ø 20 × 147
  • Frequency1: 2.4-5.0 GHz/WiFi/Sigfox/LoRa/LPWA/BT/ZigBee/RFID/ISM
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: EVET
  • Mounting: Connector Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: EVET
  • ZigBee: EVET
