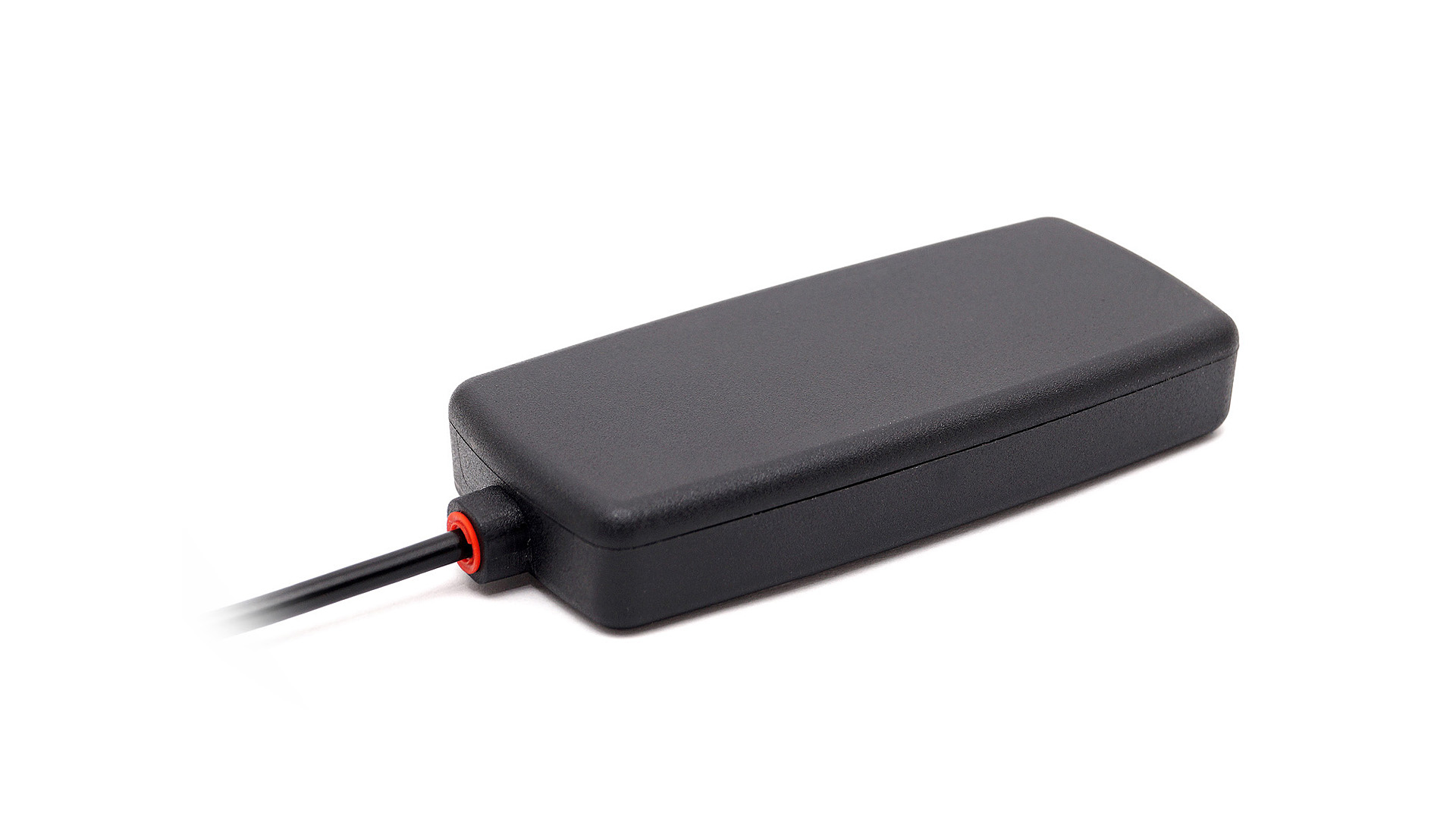

• 2J4824P

Ürün Tanımı

Customizable Cable and Connector,Ground Plane Independent,Adhesive Mount

CELLULAR/4G LTE
Standards2G,3G and 4G
Frequency698-960, 1710-2170, 2500-2700
VSWR~1.9:1, ~1.4:1, ~1.8:1
Efficiency (%)~59, ~55, ~31
Peak Gain (dBi)~3.4, ~2.1, ~1.0
Impendance (Ohm)50
PolarisationLinear
Max. Input Power (W)25


Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 83 x 35 x 13.3
  • Frequency1: 4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G 2G
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Adhesive Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
