2J4D01MPGF

  • 2J4D01MPGF
Teklif Talep Listenize Ekleyin

Ürün Tanımı

2J

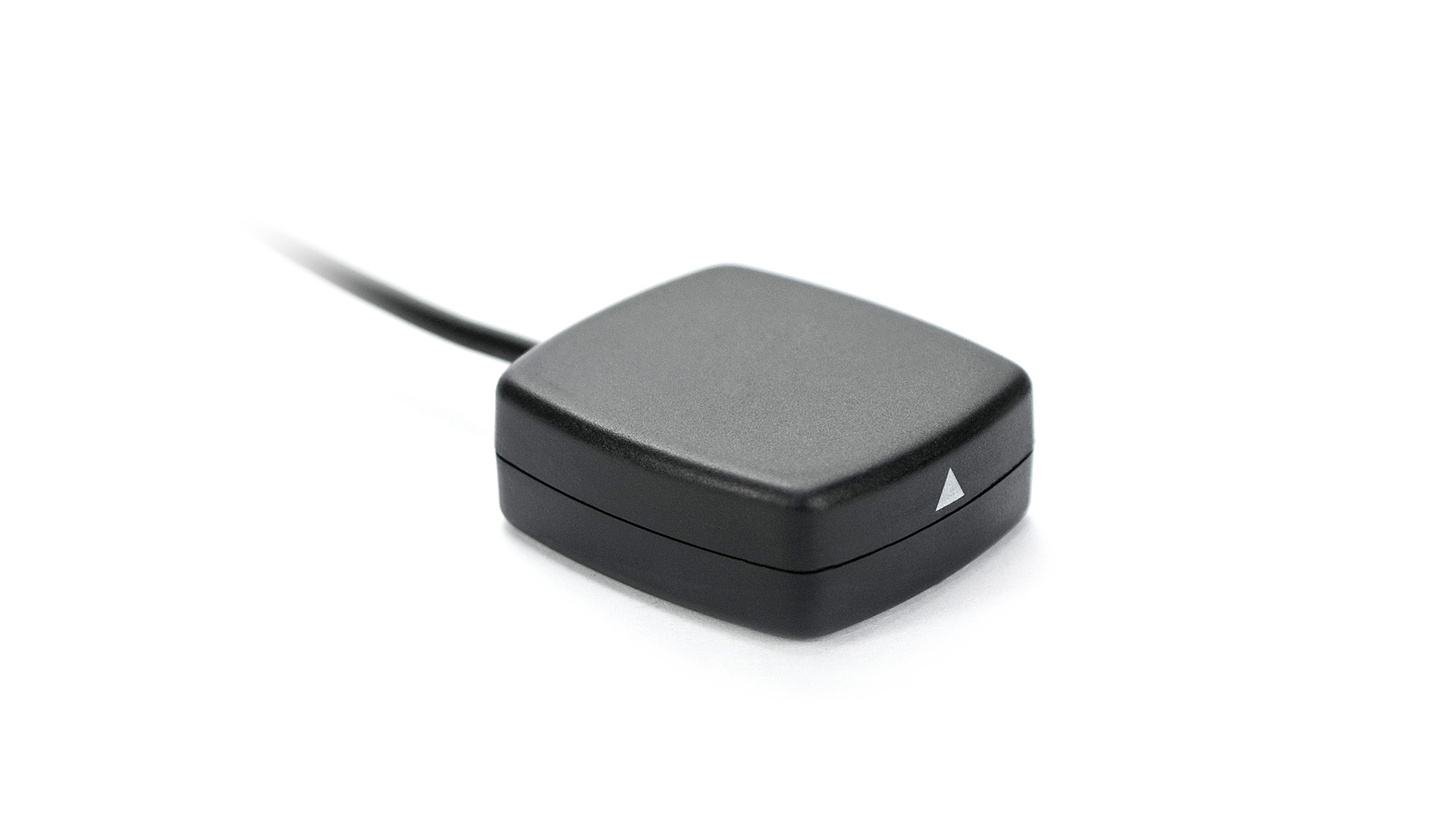

GPS/GLONASS/QZSS/Galileo,Ground Plane Independent,Customizable Cable and Connector,Certificates: IP67,Magnetic/Adhesive Mount

GPS/GLONASS
StandardsGPS/QZSS/Galileo/GLONASS
Frequency1575.42, 1598-1606
VSWR<=1.4:1
PolarisationRHCP
Impedance (Ohm)50
Active Gain (dB)28 @ 2.7 V
Power Consumption (mW)24.3 Typ
Saw Filter TypePre-Filter
ESD Protection (kV)2
Voltage (V)1.5 – 3.6
Current (mA)9 Typ

Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: -
  • Certificates: IP67
  • Dimensions (mm): 41 x 34 x 13.5/14.5
  • Frequency1: GPS/GLO/QZSS/Galileo/L1
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Magnetic/Adhesive Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
