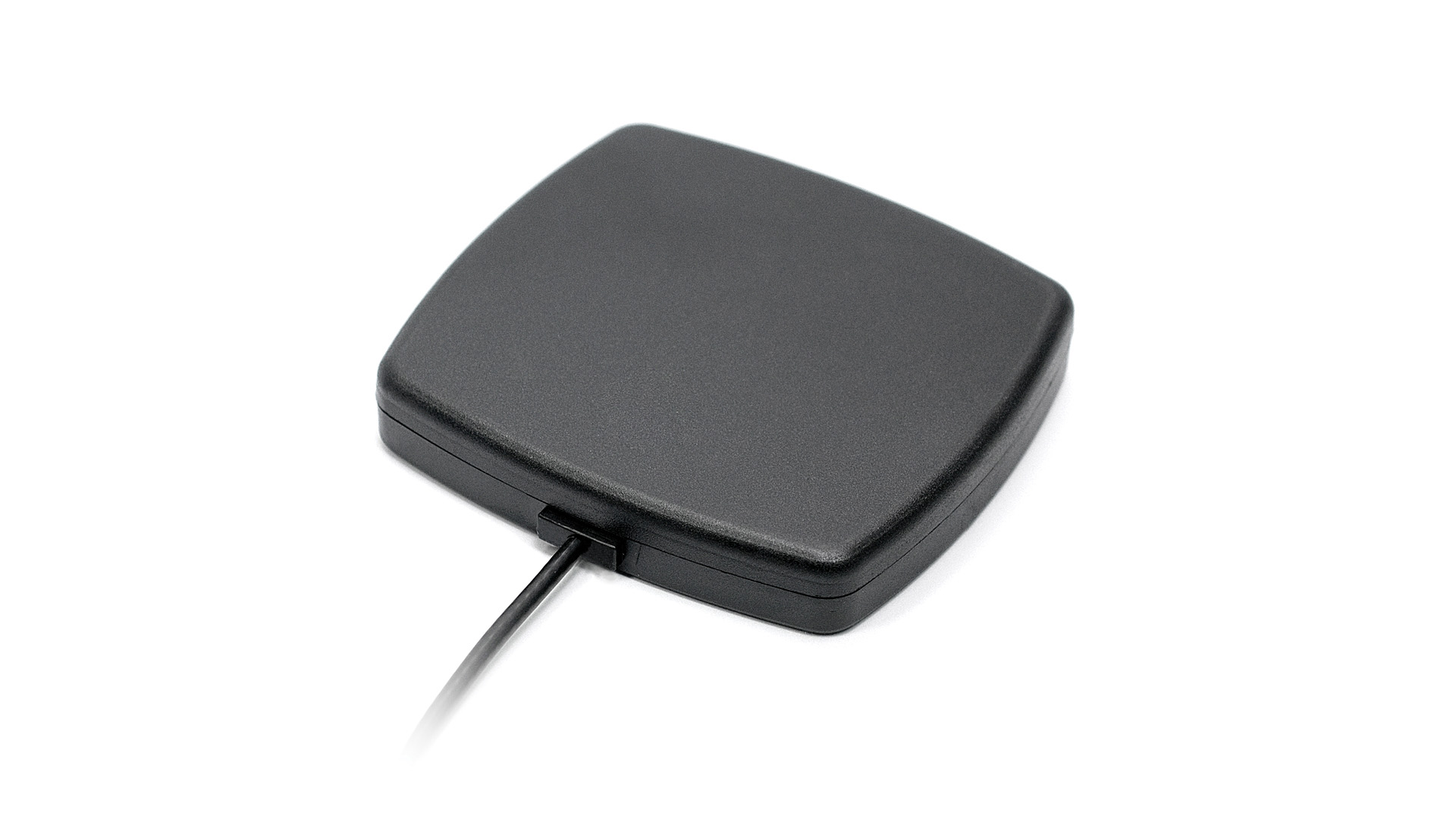

2J6026P

  • 2J6026P
Teklif Talep Listenize Ekleyin

Ürün Tanımı

2J

Low Profile,Adhesive Mount,Customizable Cable and Connector,Ground Plane Independent,High Performance

IRIDIUM
StandardsIRIDIUM
Frequency1616-1627
VSWR~1.2:1
Efficiency (%)~76
Impendance (Ohm)50
Radiation PatternHemispherical
Passive Gain (dBiC)~4.5
Axial Ratio (dB)3 max
PolarizationRHCP

Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 80 x 76 x 16
  • Frequency1: IRIDIUM
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Adhesive Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
