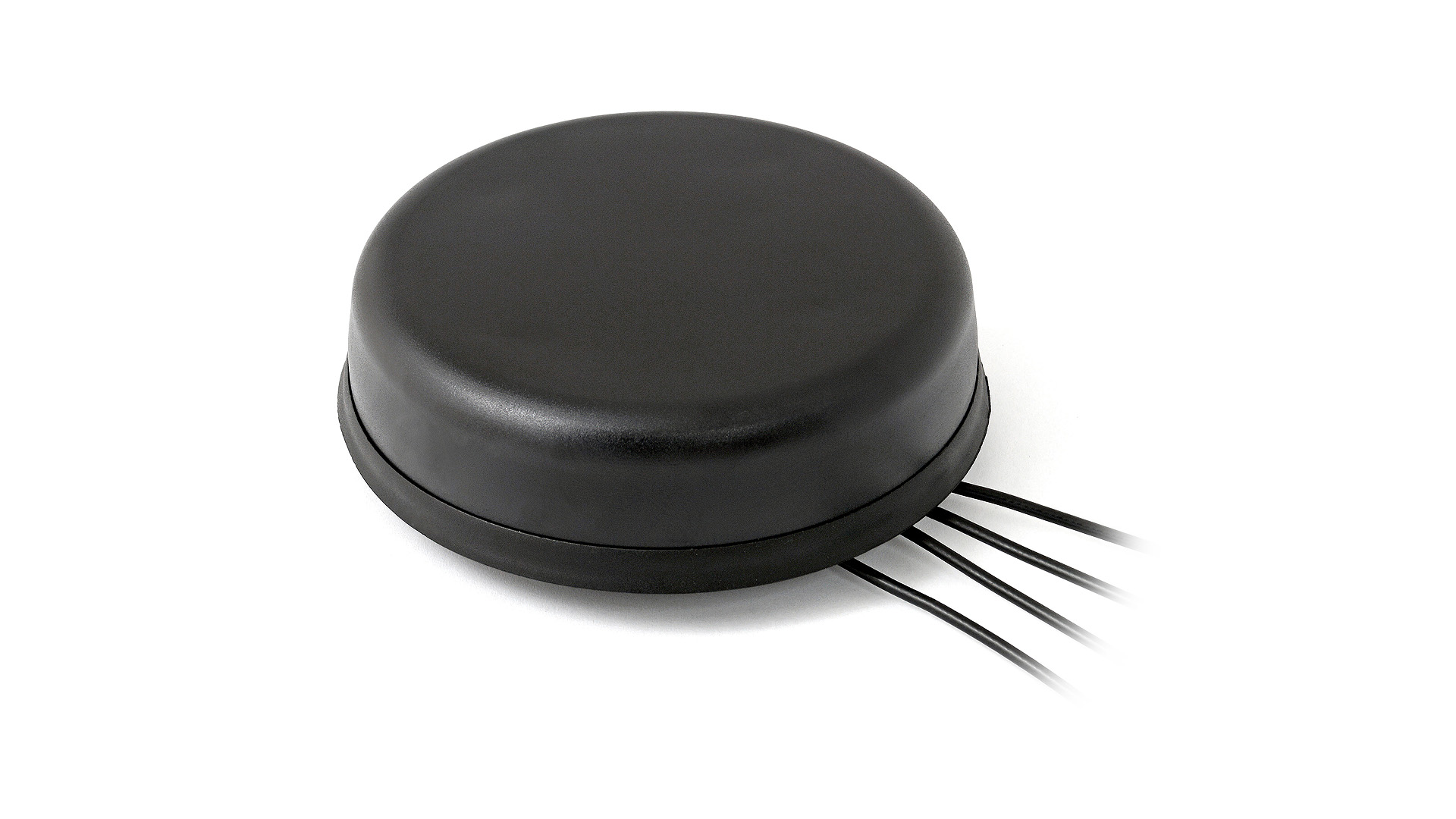

2J6551BGF
.jpg "2J6551BGF")
Ürün Tanımı
GPS/GLONASS/QZSS/Galileo,Heavy Duty antenna,Ground Plane Dependent,Screw Mount,Anti-Rotation Mechanism,Certificates: IP67, IP69K, IK09,Pre-Filter GNSS
CELLULAR
| Standards | 2G and 3G |
| Frequency | 824-960, 1710-2170 |
| VSWR | ~2.1:1, ~1.7:1 |
| Efficiency (%) | ~43, ~37 |
| Peak Gain (dBi) | ~1.8, ~2.3 |
| Impendance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
2.4 GHz ISM
| Standards | WiFi, BT, ZigBee, ISM |
| Frequency | 2410-2490 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~38 |
| Peak Gain (dBi) | ~2.5 |
| Impendance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 10 |
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
| Frequency | 1575.42, 1598-1610 |
| Impendance (Ohm) | 50 |
| Active Gain (dB) | 28 @ 2.7 V |
| Power Consumption (mW) | 24.3 @ 2.7V |
| Voltage (V) | 1.5 – 3.6 |
| Current (mA) | 9 @ 2.7 V |
IRIDIUM
| Standards | IRIDIUM |
| Frequency | 1616-1627 |
| Efficiency (%) | ~76 |
| Impendance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Passive Gain (dBi) | ~4.5 |
| Axial Ratio (dB) | 3 max |
| Polarization | RHCP |
