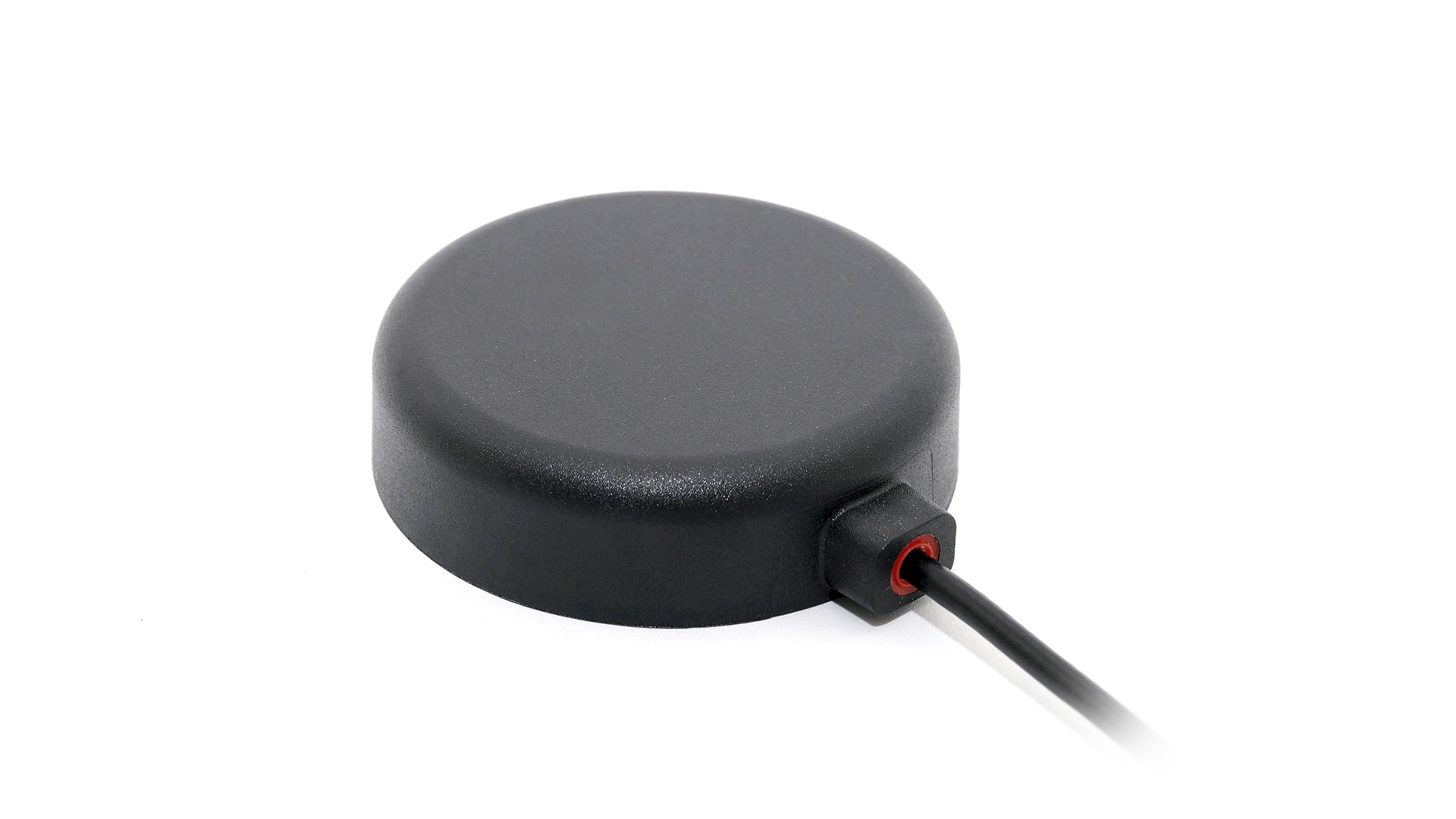

• 2J7401MGF

Ürün Tanımı

Ground Plane Independent,Magnetic Mount,Certificates: IP67, IP69K,Pre-Filter,Customizable Cable and Connector,GPS/GLONASS/QZSS/Galileo

GPS/GLONASS
StandardsGPS/QZSS/Galileo/GLONASS
Frequency1575.42, 1598-1606
VSWR<1.2:1
Efficiency (%)~65, ~68
Impendance (Ohm)50
Active Gain (dB)26 dB @ 3V, 28 dB @ 5V
Power Consumption (mW)138 Max
Voltage (V)2.7 - 5.5
Current (mA)15 - 25


Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: -
  • Certificates: IP67, IP69K
  • Dimensions (mm): Ø 54 x 14.7
  • Frequency1: GPS/GLO/QZSS/Galileo/L1
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Magnetic Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
