2JCP2542601a

  • 2JCP2542601a
Teklif Talep Listenize Ekleyin

Ürün Tanımı

2J

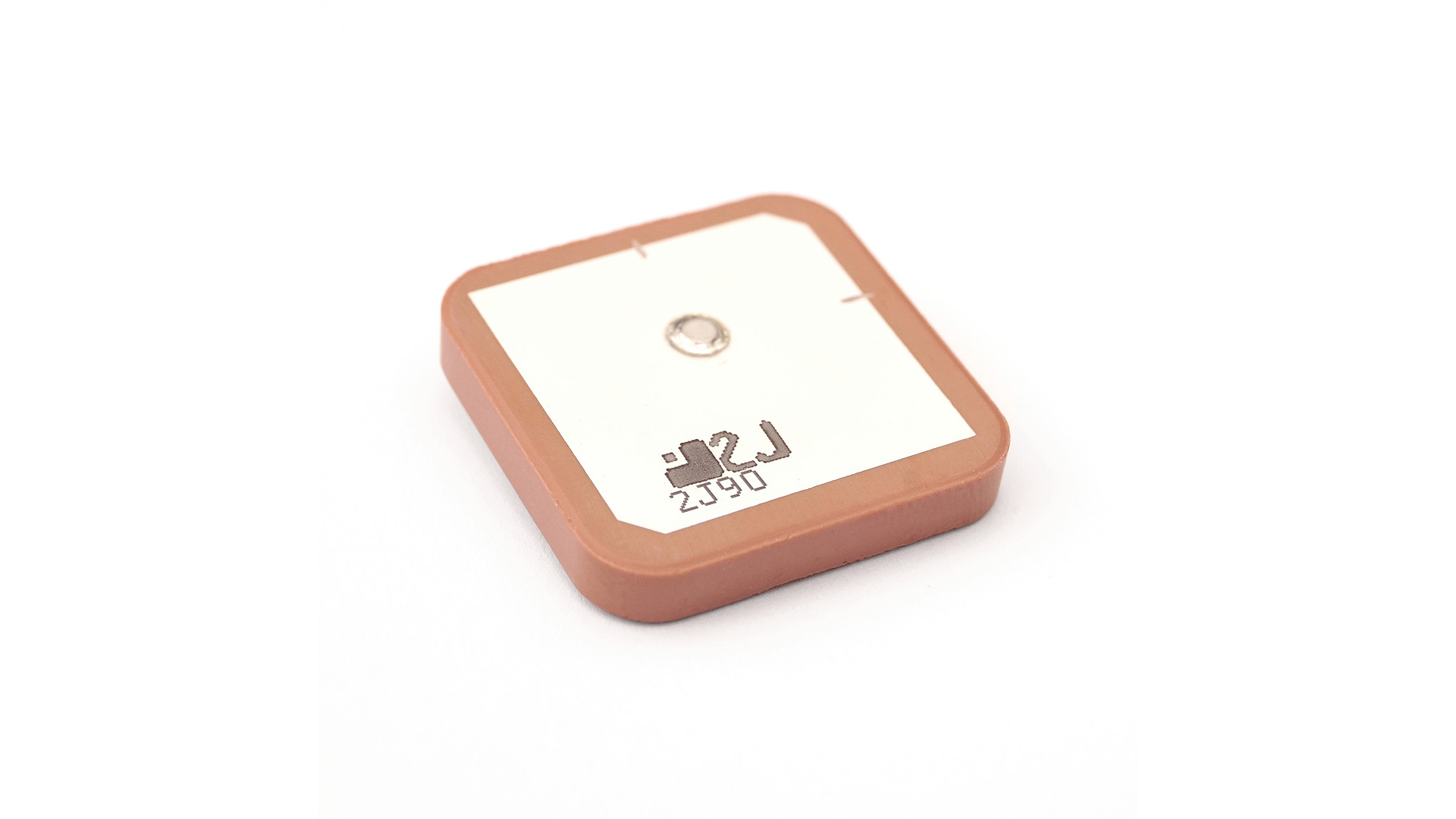

Ceramic Passive Antenna,IRIDIUM,Thru-Hole Mount,25 × 25 × 4 mm,Ground Plane Dependent

IRIDIUM - Ceramic Passive Antenna
StandardsIRIDIUM
Frequency1616-1627
Efficiency (%)~82.3
Radiation PatternHemispherical
Passive Gain (dBi)~5.1
Axial Ratio (dB)3 max
PolarizationRHCP

Ürün Detayları

  • Antenna Type: Dahili
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 25 x 25 x 4
  • Frequency1: IRIDIUM
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Thru-Hole Mount Ceramic
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
