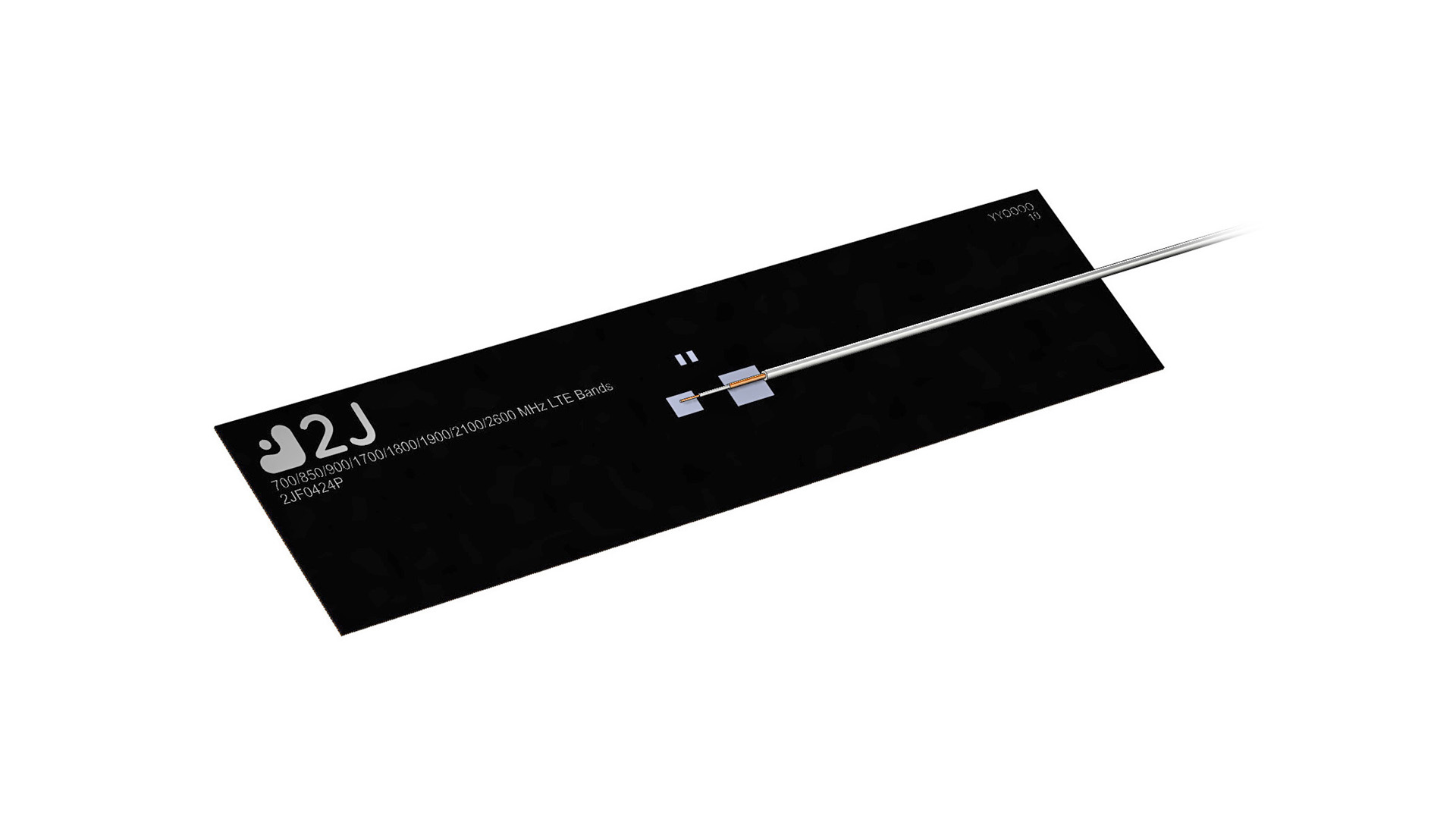

• 2JF0424P

Ürün Tanımı

Customizable Cable and Connector,High Performance,Flexi Embedded Antenna,Self-Adhesive

CELLULAR/4G LTE
Standards2G,3G and 4G
Frequency698-960, 1710-2170, 2500-2700
VSWR~1.7:1, ~1.1:1, ~1.7:1
Efficiency (%)~58, ~74, ~61
Peak Gain (dBi)~1.5, ~3.1, ~3.5
Impendance (Ohm)50
PolarisationLinear
Max. Input Power (W)25


Ürün Detayları

  • Antenna Type: Dahili
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 136.8 x 32.6 x 0.2
  • Frequency1: 4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G 2G
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Adhesive Mount Flexible
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
