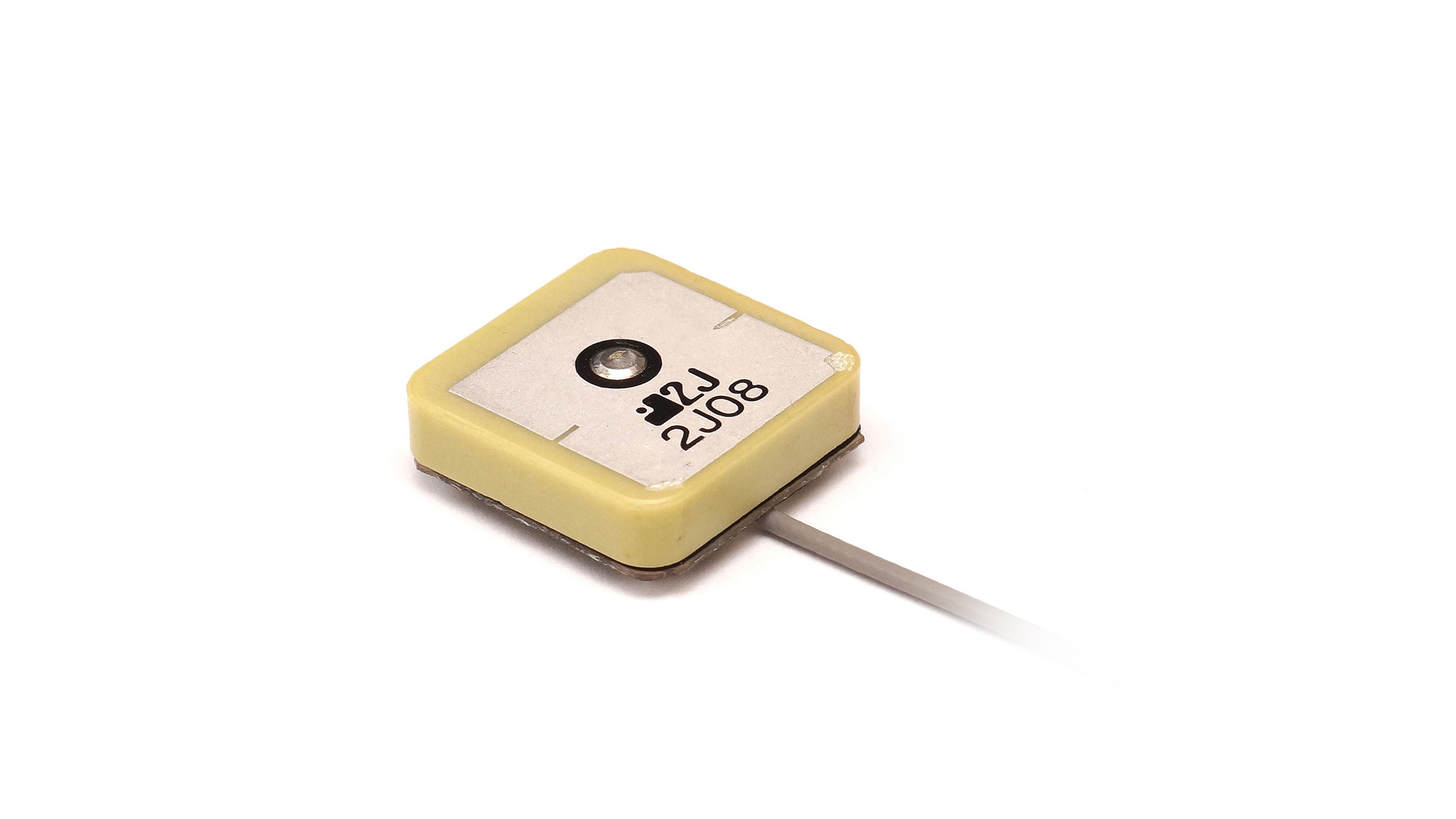

2JM0401F

  • 2JM0401F
Satın Al Teklif Talep Listenize Ekleyin

Ürün Tanımı

2J

GPS/QZSS/Galileo,Pre-Filter,28 dB Gain,Low Noise Figure,Low Power Consumption,18 × 18 × 6.5 mm

GPS - Ceramic Active Antenna
StandardsGPS/QZSS/Galileo
Frequency1575.42
Passive Gain (dBi)~3.6
Voltage Range (V)1.5 - 3.6
Active Gain (dB)28 @ 2.7 V
Noise Figure (dB)1.8 @ 2.7 V
Current Consumption (mA)9 @ 2.7 V
Power Consumption (mW)24.3 @ 2.7 V
Saw Filter TypePre-Filter
Out of Band Rejection (dB)43
ESD Protection (kV)6

Ürün Detayları

  • Antenna Type: Dahili
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 18 x 18 x 6.5
  • Frequency1: GPS/QZSS/Galileo/L1
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Snap-in Mount Module
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
