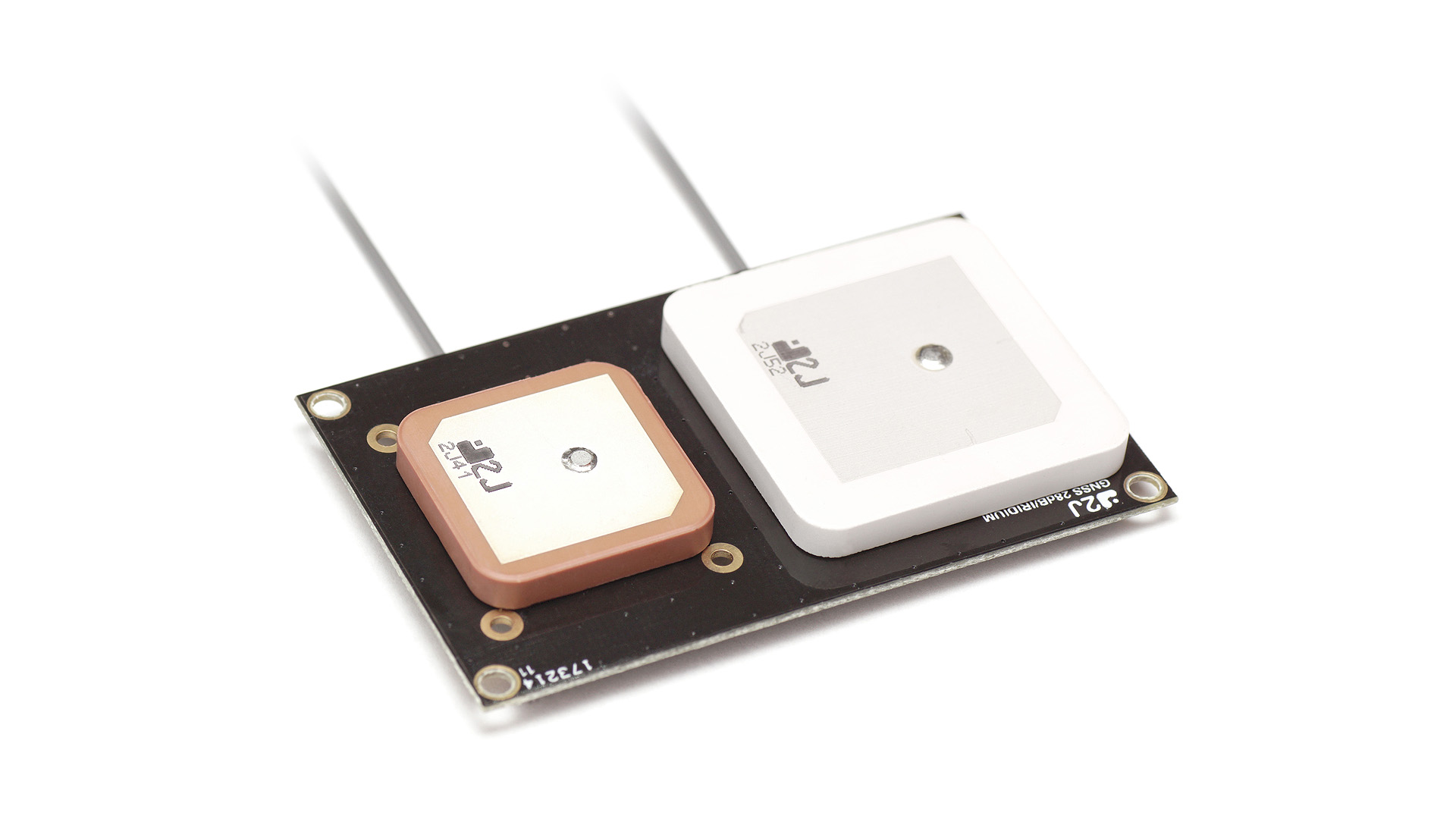

2JP0133BGF

  • 2JP0133BGF
Satın Al Teklif Talep Listenize Ekleyin

Ürün Tanımı

2J

GPS/GLONASS/QZSS/Galileo,Ground Plane Independent,Embedded Antenna,Screw Mount,Low Power Consumption,Pre-Filter GNSS

GPS/GLONASS
StandardsGPS/QZSS/Galileo/GLONASS
Frequency1575.42, 1598-1606
Active Gain (dB)28 @ 2.7 V
Power Consumption (mW)24.3 @ 2.7V
Saw Filter TypePre-Filter
Voltage (V)1.5 – 3.6
Current (mA)9 @ 2.7 V
IRIDIUM
StandardsIRIDIUM
Frequency1616-1627
Efficiency (%)~76
Radiation PatternHemispherical
Passive Gain (dBi)~4.5
Axial Ratio (dB)3 max
PolarizationRHCP

Ürün Detayları

  • Antenna Type: Dahili
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 74 x 45 x 8.8
  • Frequency1: GPS/GLO/QZSS/Galileo/L1
  • Frequency2: IRIDIUM
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Screw Mount Module
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
