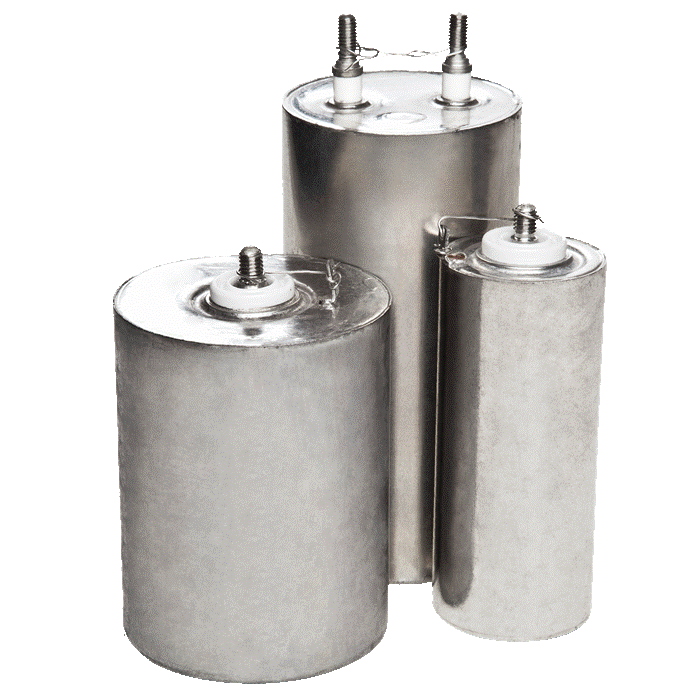

681P
Main Features
High Enery Density |
Metal Case |
Lightweight |
Typical Applications
Flash |
Laser |
Strobe |
Technical Characteristics
Dielectric | Non-inductive wound proprietary composition dielectric silicone oil impregnated | |
Capacitance | Minimum : 5 µF | |
Capacitance | Maximum : 100 µF | |
Voltage DC | Minimum : 1000 V | |
Voltage DC | Maximum : 2500 V | |
Voltage AC | Not supported | |
Temperature | Minimum : 0 °C | |
Temperature | Maximum : 40 °C | |
Case sizes | Not available | |
Terminations | Radial | |
Notes | No special note |
