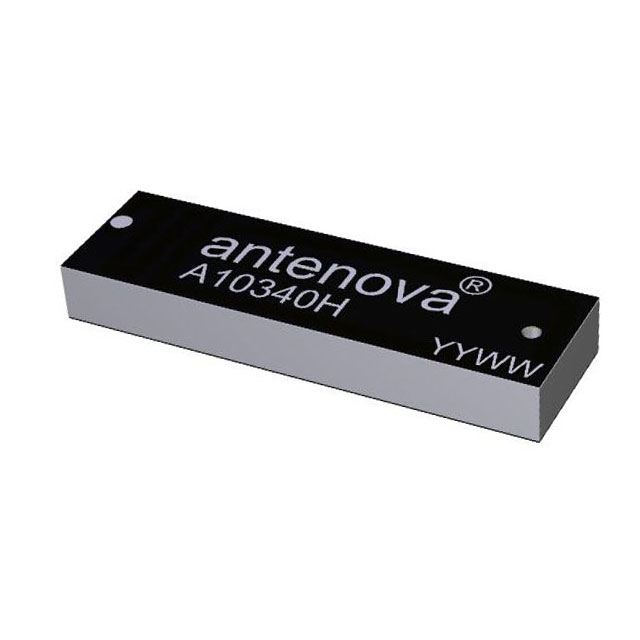

A10340H (Calvus)
.jpg "A10340H")
Ürün Tanımı
Product Attributes
| Part Number | A10340H |
| Series | Calvus |
| RF Family/Standard | Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 5 |
| VSWR | 3.1 |
| Return Loss | -6dB |
| Gain | 1.7dBi, 3dBi |
| Termination | Solder |
| Mounting Type | Surface Mount |
| Height | Height: 3.20mm |
| Applications | GSM, UMTS |
