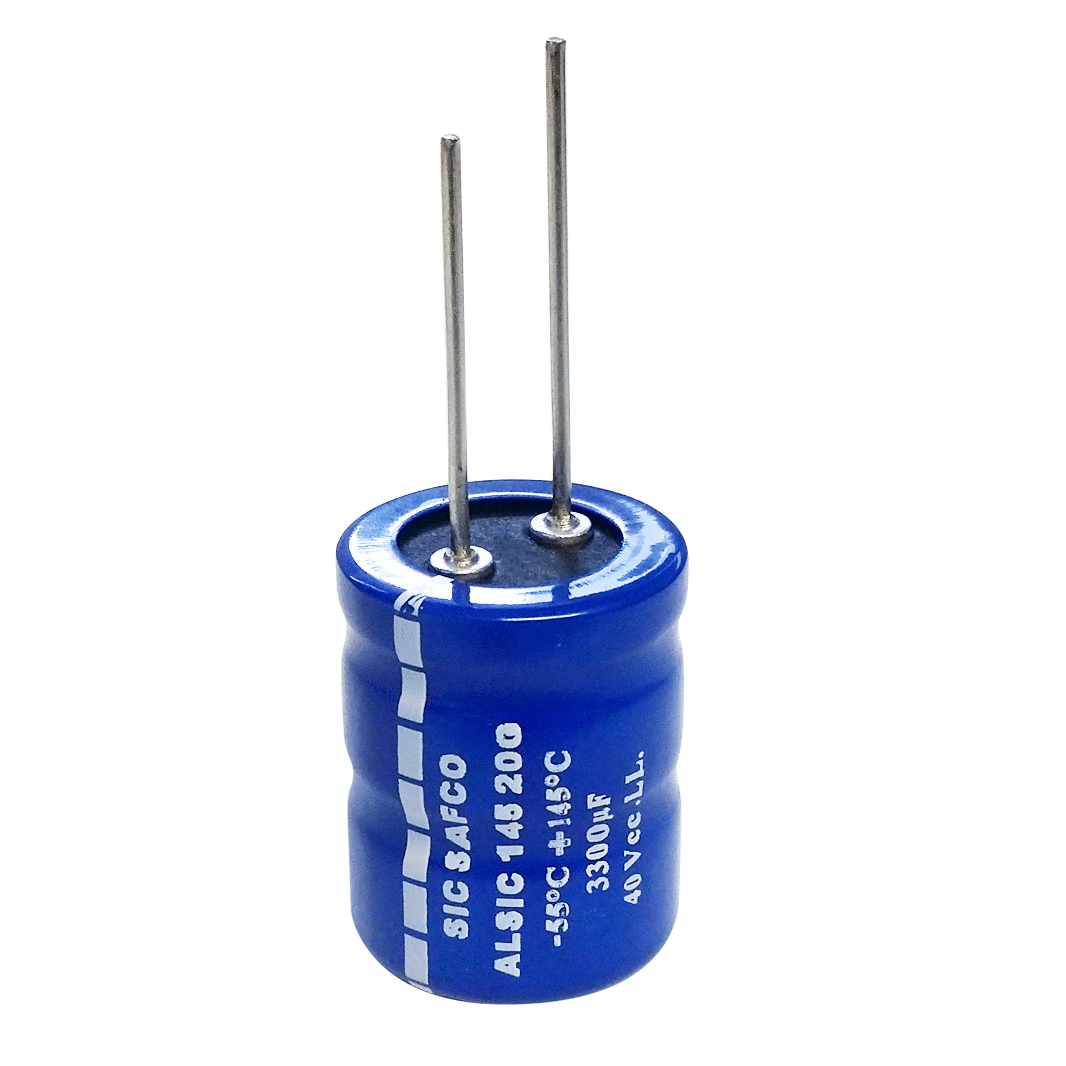

ALSIC 145 20G
.gif "ALSIC 145 20G")
Ürün Tanımı
Main Features
| 20g radial type |
| High temperature |
Typical Applications
| Filtering |
Technical Characteristics
| Dielectric | Aluminum | |
| Capacitance | Minimum : 220 µF | |
| Capacitance | Maximum : 3300 µF | |
| Voltage DC | Minimum : 10 V | |
| Voltage DC | Maximum : 100 V | |
| Voltage AC | Not supported | |
| Temperature | Minimum : -55 °C | |
| Temperature | Maximum : 145 °C | |
| Case sizes | 18x35 18x40 22,5x40 18x30 | |
| Terminations | leads | |
| Notes | No special note |
