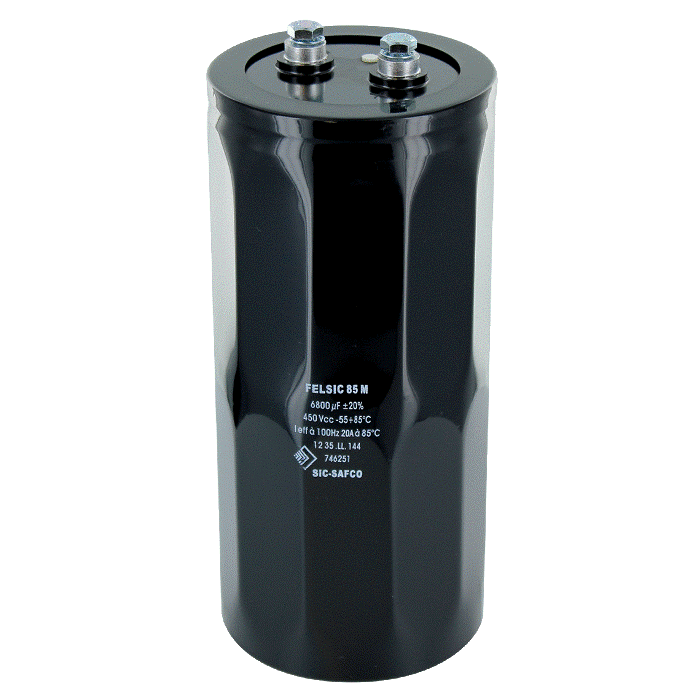

FELSIC 85M
Main Features
Standard 85°C |
Typical Applications
filtering |
Energy storage |
Technical Characteristics
Dielectric | Aluminum | |
Capacitance | Minimum : 68 µF | |
Capacitance | Maximum : 330000 µF | |
Voltage DC | Minimum : 10 V | |
Voltage DC | Maximum : 630 V | |
Voltage AC | Not supported | |
Temperature | Minimum : -55 °C | |
Temperature | Maximum : 85 °C | |
Case sizes | 51x81 51x104 66x104 77x104 77x144 77x220 90x144 90x200 36x52 36x60 36x80 36x104 | |
Terminations | Screw | |
Notes | No special note |
