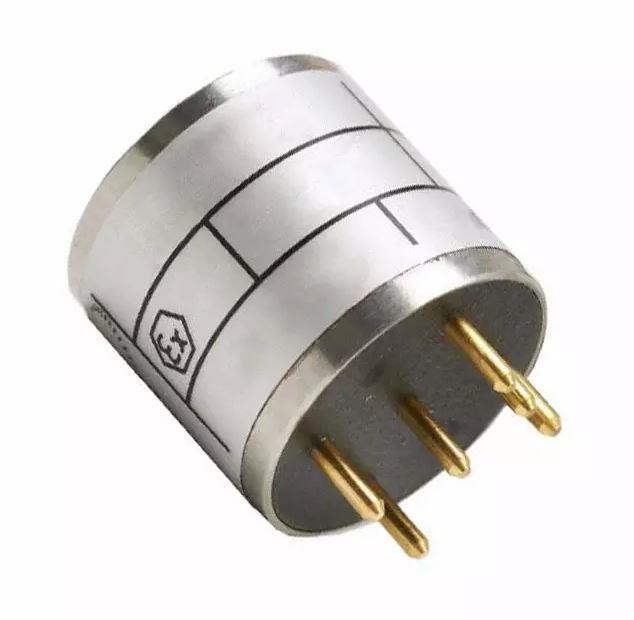

• IR22GJ

Ürün Tanımı

Certified: ATEX, IECEx

  • For detection of the following gases:
    • Carbon Dioxide (IR21 Series)
    •  Hydrocarbons (IR22 series, IR23 series)
  • Gas concentration ranges:
    • 0 - 5% Carbon Dioxide (also suitable for 0 to 0.5%v/v)
    • 0 - 100% Carbon Dioxide (also suitable for 0 to 10%)
    •  0 - 100%v/v Hydrocarbons(also suitable for 0 to 100%LEL)
  • 16.6mm or 19.0mm sensor heights available, in a Rugged stainless steel construction
  • Embedded temperature sensor in some versions for improved temperature compensation
  • Shock-resistant IR Source version available on certain types
  • Reference channel for self-compensation
  • Fast Response operational in varying temperature, pressure and humidity
  • Immunity from ‘poisoning’
  • Reliable fail-safe operation


Specifications
  • Part Number:IR22GJ
  • Manufacturer:SGX Sensortech Limited
  • Status:Standard
  • Gas:Hydrocarbons, Methane
  • Concentration Range:0-100% Volume
  • Type:Standard
  • Housing:20 mm x 19 mm
  • Internal Temp Sensor:LM60
  • Qty of pins:7
  • Temperature Range:-20 to 60
  • Certification:Ex, IECEx


Ürün Detayları

  • Certification: Ex, IECEx
  • Concentration Range: 0-100%% Volume
  • Gas: Methane, Hydrocarbons
  • Housing: 20 mm x 19 mm
  • Internal Temp Sensor: LM60
  • Qty of pins: 7
  • Temperature Range (°C): -20 to 60
  • Type: Standard
