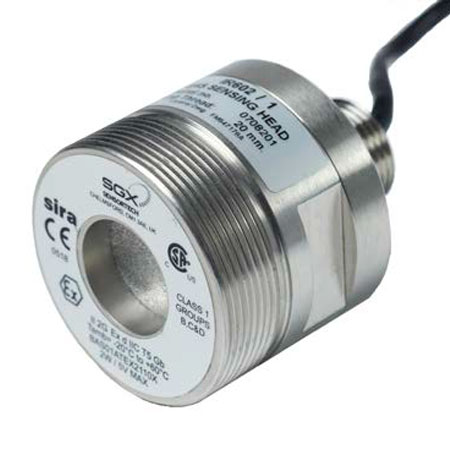

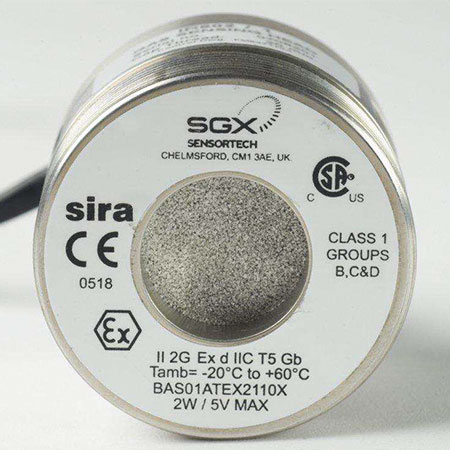

Ürün Tanımı

  • For detection of the following gases:

                Carbon Dioxide (IR601),

                Hydrocarbons (IR602, IR603)

                Acetylene (IR604)

  • CSA certified (Canada and US)
  • ATEX certified
  • Diffused gas sampling via sinter
  • Low power
  • Reference channel for self-compensation
  • Special gold plated optical/gas cavity for stable signal levels
  • Operational in varying temperature, pressure and humidity
  • Fast response
  • Low maintenance, Rugged stainless steel construction
  • No moving parts
  • Resistance to corrosion
  • Immunity from ‘poisoning’, Reliable fail-safe operation
  • Sealed preamplifier/buffer electronics
  • Accessories available for field applications


Specifications
  • Part Number:IR603/3
  • Manufacturer:SGX Sensortech Limited
  • Status:Standard
  • Gas:Hydrocarbons (Broad Band)
  • Concentration Range:0-100% LEL, 0-100% Volume
  • Type:ANP (Taper) 3/4"" - 14 NPT
  • Housing:Flameproof, Stainless Steel
  • Internal Temp Sensor:Standard
  • Qty of pins:8
  • Temperature Range:-20 to 60
  • Certification:ATEX, CSA


Ürün Detayları

  • Certification: ATEX, CSA
  • Concentration Range: 0-100%% LEL, 0-100%% Volume
  • Gas: Hydrocarbons (Broad Band)
  • Housing: Flameproof, Stainless Steel
  • Internal Temp Sensor: Standard
  • Qty of pins: 8
  • Temperature Range (°C): -20 to 60
  • Type: "ANP (Taper) 3/4"" - 14 NPT"
