Ürün Tanımı

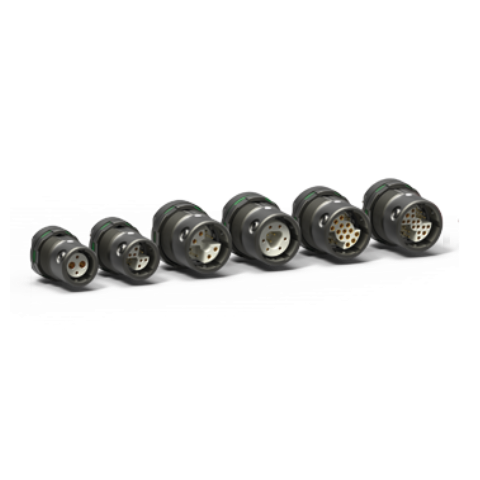

MINIATURE HIGH-SPEED DATA CONNECTIVITY

Ideally suited for applications where SWaP (Space, Weight and Power) is critical, MiniMax connectivity solutions offer a unique ruggedized, watertight (IP68, 20m/24h) housing, with a choice of three locking systems (push-pull, screw, quick-release).

Available in black and anthracite and as a pre-cabled solution.

2 sizes (06 and 08): with receptacle of 10mm and 12mm diameter


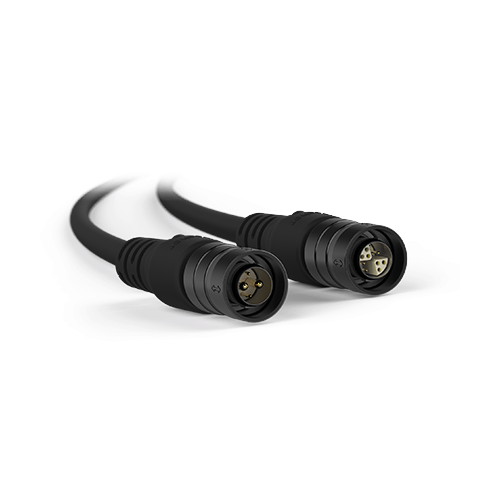

MINIMAX 06

Key Features

  • Sealing: IP68 (20m/24h), mated and unmated
  • with receptacle of 10mm diameter
  • 3 locking systems: push-pull, screw and quick-release
  • Configurations: 4-12 contacts
  • Mating cycles: >5,000
  • 1,000 hours salt-mist spray
  • Operating temperature range: -40°C to +135°C
  • Tested to MIL-Specs
  • 360° EMC shielding
  • Usability: blind mating, easy to handle even with gloves
  • Cable assembly integrated solutions and overmolding
  • Custom designs available on request


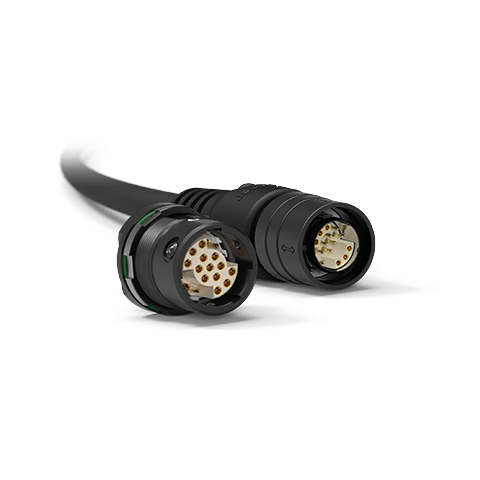

MINIMAX 08

Key Features

  • Sealing: IP68 (20m/24h), mated and unmated
  • with receptacle of 12mm diameter
  • 3 locking systems: push-pull, screw and quick-release
  • Configurations: 8-24 contacts
  • Mating cycles: >5,000
  • 1,000 hours salt-mist spray
  • Operating temperature range: -40°C to +135°C
  • Tested to MIL-Specs
  • 360° EMC shielding
  • Data protocols: USB 2.0, USB 3.0, Ethernet, HDMI
  • Usability: blind mating, easy to handle even with gloves
  • Cable assembly integrated solutions and overmolding
  • Custom designs available on request

HIGH-SPEED DATA TRANSFER



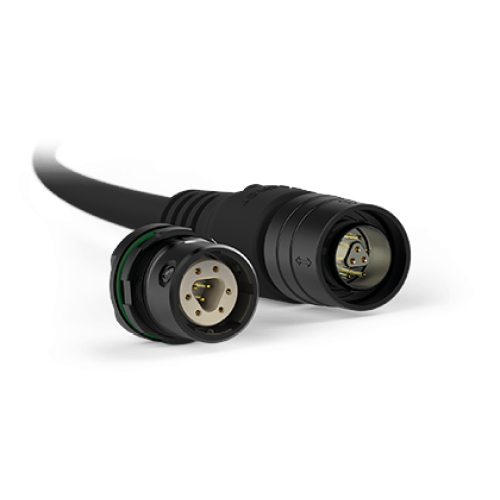

8-Pin Ethernet

A unique robust and sealed miniature connector for Ethernet applications in harsh environments.

  • AWG24, compatible with long range standard Ethernet cables
  • Symmetrical hermaphroditic contact block
  • 0.5mm contacts

9-Pin USB 3.0



Optimized design for full USB3.0 performance. Successfully tested to the full S-parameter standards with cables up to 2m.

  • Advanced power contacts
  • Hermaphroditic contact block
  • 0.5mm contacts

 HIGH DENSITY, SIGNAL & POWER IN ONE MINIATURE CONNECTOR

The Fischer MiniMax™ Series increases the performance of your miniature rugged devices, handling more mixed signal and power connections in a smaller footprint.

Key features and benefits

High-density miniaturization

High Speed Communication

  •  Unique combination of up to 24 signal & power contacts in just Ø12 mm
  •  Combines multiple protocols in one connector
  •  Up to 45% smaller and 75% lighter. Can replace multiple large connectors with only a small one



High-speed data transfer

High Speed Communication

  •  USB 2.0 and USB 3.0
  •  Ethernet (up to 10 Gb/s)
  •  HDMI 1.3



Reliability

Reliability

  •  IP68 watertight (20m/24h)
  •  5,000 mating cycles
  •  1,000 hours salt-mist spray



High-density miniaturization

The MiniMax connector aims to increase the performance of miniature rugged devices, handling more mixed signal and power connections in a unique combination. Our highly-engineered miniature signal & power connectivity solution is ideally suited for applications where Space, Weight and Power (SWaP) is critical, increasing portability and resisting water, corrosion, vibration, shock and extreme temperatures.


Reliability

Advances in design and production processes have also enabled Fischer Connectors to increase the depth that all Fischer MiniMax™ Series connectors can safely achieve, providing enhanced reliability for extreme environments. The more stringent IP68 sealing level ensures all MiniMax connectors and cable assembly solutions now go even deeper than ever before – achieving a new standard of 20 meters for 24 hours.
