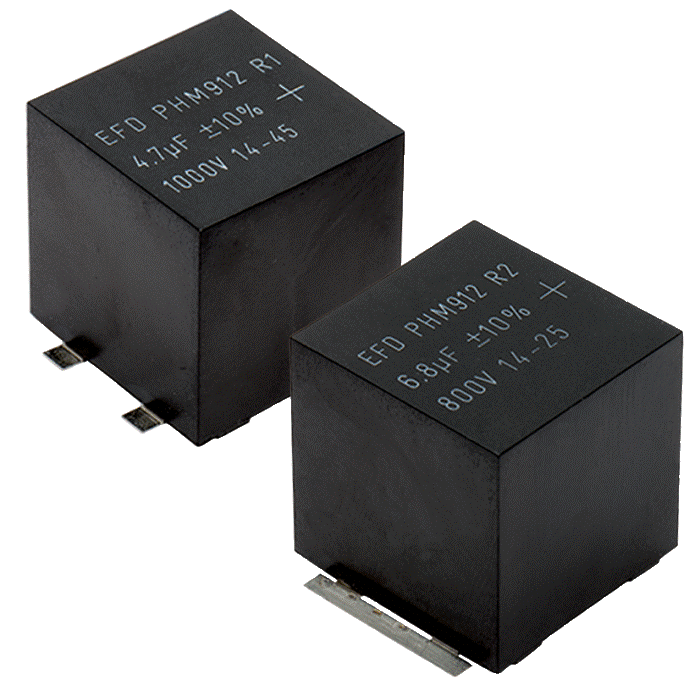

PHM 912 R1-R2
.gif "PHM 912 R1-R2")
Ürün Tanımı
Main Features
| High temperatures (155°C) |
Typical Applications
| capacitor for HF switch mode power supplies |
Technical Characteristics
| Dielectric | Not available | |
| Capacitance | Minimum : 0,15 µF | |
| Capacitance | Maximum : 68 µF | |
| Voltage DC | Minimum : 250 V | |
| Voltage DC | Maximum : 1000 V | |
| Voltage AC | Not supported | |
| Temperature | Minimum : -55 °C | |
| Temperature | Maximum : 155 °C | |
| Case sizes | Lxhxe = 20*6,5*20 to 31*32*32 | |
| Terminations | SMD | |
| Notes | No special note |
