• Riverdi Revelation Board

Ürün Tanımı

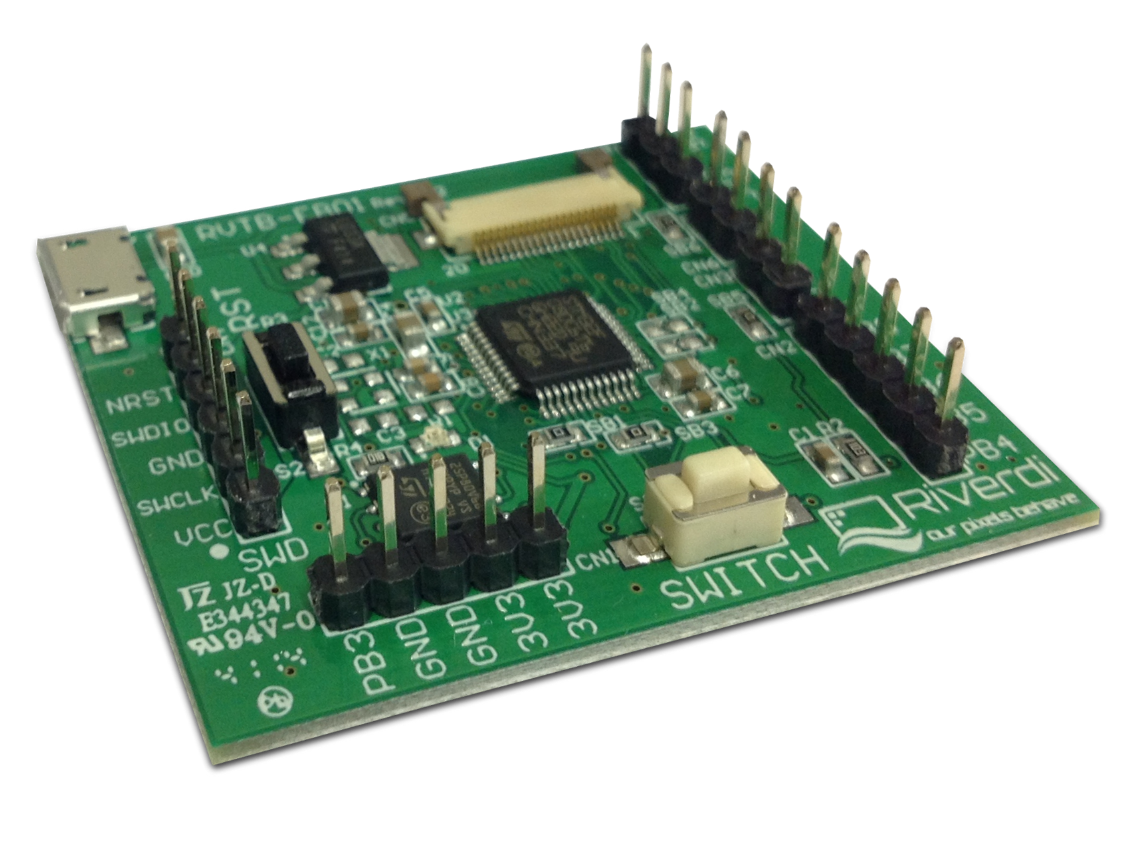

Revelation board is an evaluation tool designed to help to start working with Riverdi TFT modules with FT8xx  controller.

It is based on STM32F0 family MCU.

This tool you can also use as a platform to build your own application.

Revelation Board is preprogramed in factory, so to evaluate Riverdi TFT modules with FT8XX controllers, just follow these steps:

1. Connect TFT module via 20 pin 0.5mm FFC to CN8.
2. Connect micro USB 5V power supply to CN7.
3. Press S1 to choose size and type of evaluated TFT.

RIVERDI REVELATION BOARD CONTAINS

BOARD

    Revelation Board (x1)

FFC CABLE

    FFC cable, 0.5mm pitch, 20 pin, 150 mm (x1)

USB CABLE

    USB Cable 2.0, AM-microUSB B, 0.8m (x1)

Revelation Board standard demo firmware for FT80x controller

Revelation Board standard demo firmware for FT81x controller

Revelation board source code for FT80x controller

Revelation board source code for FT81x controller
