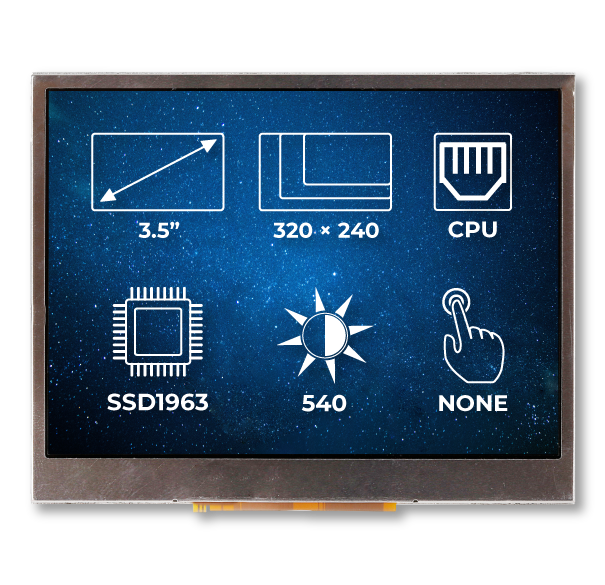

A Riverdi 3.5″ TFT display with an anti-glare surface treatment.
The 320×240 resolution provides crisp and clear colors, while the screen is driven by the powerful SSD1963 graphics controller.
The display features the standard CPU interface.
What makes the RVT3.5A320240CNWN36 a great display?
The RVT3.5A320240CNWN36 is a high-quality Riverdi 3.5’’ TFT display module with a sleek and elegant design.
The 12:00 o’clock viewing angle allows the user a natural and intuitive way to interact with the display.
The RVT3.5A320240CNWN36 has a built-in LED inverter.
For more information about the RVT3.5A320240CNWN36 see the documentation section.

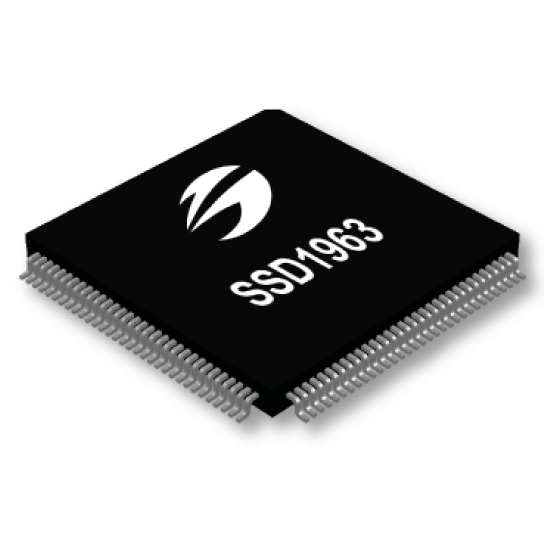

A powerful graphics controller
If your project requires a more complex execution the SOLOMON SSD1963 graphic controller is a great choice. The Solomon SSD1963 has 1 MB memory which you can use to write all your display data. It offers standard features like programmable brightness, contrast and saturation control, as well as dynamic Backlight Control (DBC) over the PWM signal.
In case you need low power consumption, the controller offers a deep sleep mode. For more information about the SOLOMON SSD1963 graphic controller, see the data sheet.
