• SH-32S

Ürün Tanımı

FEATURES

  • Excellent frequency accuracy and temperature characteristics
  • Low current consumption
  • Complete Pb-free
  • Incorporated highly reliable photolithographic crystal resonator

SPECIFICATIONS

ItemSymbolSpecifications
Nominal Frequencyf_nom32.768kHz
Frequency Tolerancef_tol±3 x 10-6 +25℃,VCC=3.3 V
Frequency Tolerancef0_Tc±50 x 10-6 -40~+85℃(+25℃ is reference)
Supply VoltageVcc1.3~5.5V(*1)
Temperature Compensated VoltageVTEM2.0~5.5V
Current ConsumptionIcc1.0μA Typ.
2.0μA Max.
 3.3V,No load condition
 SymmetrySYM50±10% Load:15pF
Rise Time / Fall Timetr/tf50ns Max.Load:15pF

Output level 20~80%

Output Load Condition CLOUT 15pF Max. CMOS Loading
Frequency Ageingf_age±3 x 10-6/Year
Operating TemperatureT_use−40ºC to +85ºC
Storage TemperatureT_stg−55ºC to +125ºC

(*1) When the supply voltage becomes becomes below 2V, the frequency temperature compensation operation is inactivated.

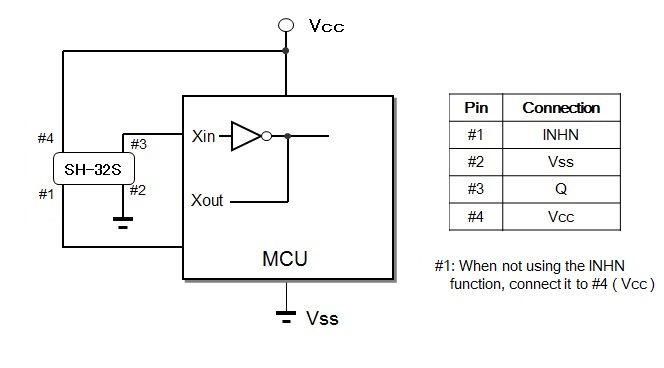

THE EXAMPLE FOR CIRCUIT CONNECTION WITH MCU

DRAWING



Ürün Detayları

  • Area (mm2): 5,12
  • Frequency Tolerance: ±3 x 10-6
  • Height (mm): 0,9
  • Load Capacitance:  -
  • Nominal Frequency: 32.768kHz
  • Type: SMD Type
