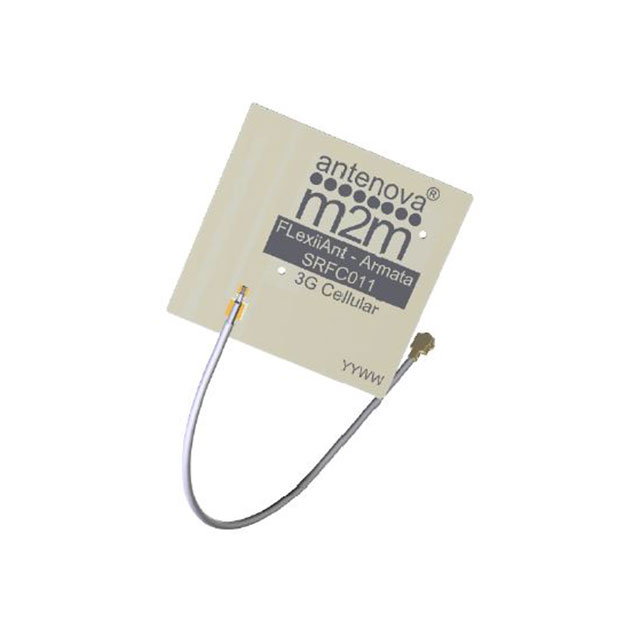

• SRFC011-200

Ürün Tanımı

Product Attributes
Part NumberSRFC011-200
Series-
RF Family/StandardCellular
Frequency GroupUHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)892MHz, 1.9GHz
Frequency Range824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna TypeFlat Patch
Number of Bands2
VSWR2.2
Return Loss-12dB
Gain4dBi
TerminationU.FL (UMCC), IPEX MHF1
Mounting TypeAdhesive
HeightHeight: 0.15mm
ApplicationsGSM, WCDMA


Ürün Detayları

  • Antenna Type: Dahili
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): Height: 0.15mm
  • Frequency1: 892MHz
  • Frequency2: 1.9GHz
  • Frequency3: -
  • Frequency4: -
  • Frequency5: -
  • LoRa/Sigfox: -
  • Mounting: Adhesive Mount Flexible
  • Operating Temperature: -
  • WiFi: -
  • ZigBee: -
