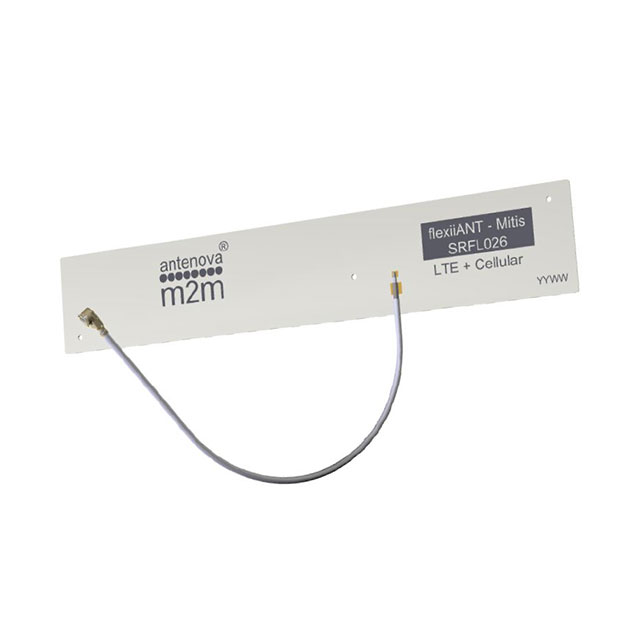

SRFL026-150 (Mitis)

  • SRFL026-150
Teklif Talep Listenize Ekleyin

Ürün Tanımı

Antenova

Product Attributes
Part NumberSRFL026-150
SeriesMitis
RF Family/StandardCellular
Frequency GroupWide Band
Frequency (Center/Band)748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz
Frequency Range698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Antenna TypeFlat Patch
Number of Bands5
VSWR3.1
Return Loss-10dB
Gain3.5dBi
TerminationU.FL (UMCC), IPEX MHF1
Mounting TypeAdhesive
HeightHeight: 0.15mm
ApplicationsGSM, LTE, W-CDMA

Ürün Detayları

  • Antenna Type: Dahili
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): Height: 0.15mm
  • Frequency1: 748MHz
  • Frequency2: 892MHz
  • Frequency3: 1.94GHz
  • Frequency4: 2.35GHz
  • Frequency5: 2.6GHz
  • LoRa/Sigfox: -
  • Mounting: Adhesive Mount Flexible
  • Operating Temperature: -
  • WiFi: -
  • ZigBee: -
