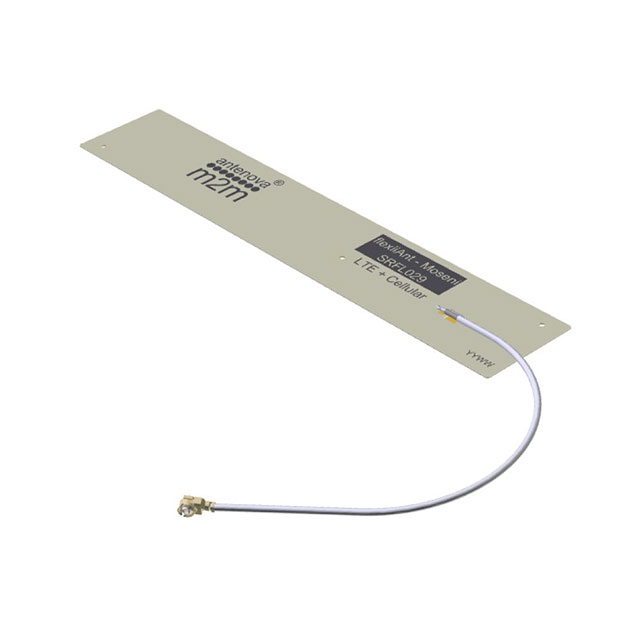

SRFL029-200 (Moseni)
.JPG "SRFL029-200")
Ürün Tanımı
Product Attributes
| Part Number | SRFL029-200 |
| Series | Moseni |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz |
| Frequency Range | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 5 |
| VSWR | 1.7 |
| Return Loss | -8dB |
| Gain | 3.8dBi |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Mounting Type | Adhesive |
| Height | Height: 0.15mm |
| Applications | GSM, LTE, W-CDMA |
