Ürün Tanımı


A WIDE RANGE OF RUGGED CONFIGURATIONS FOR BOTH SIGNAL AND POWER

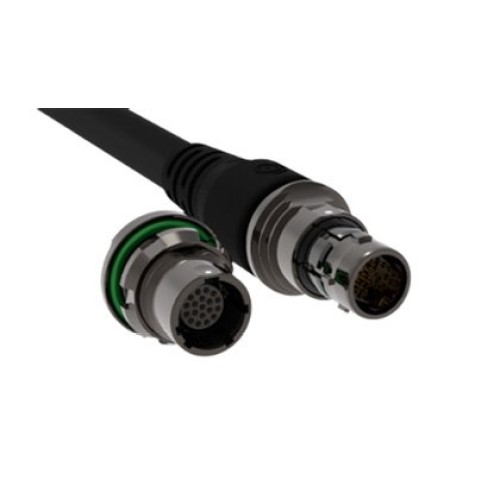

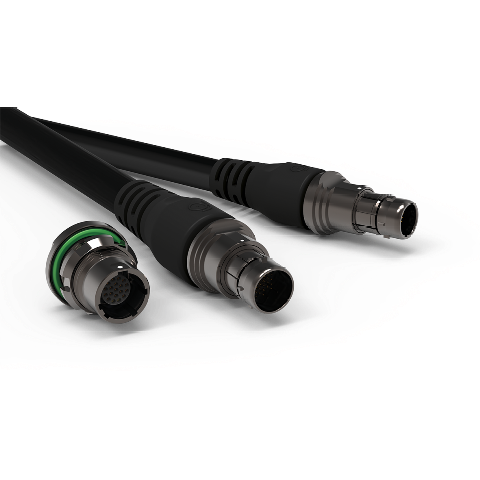

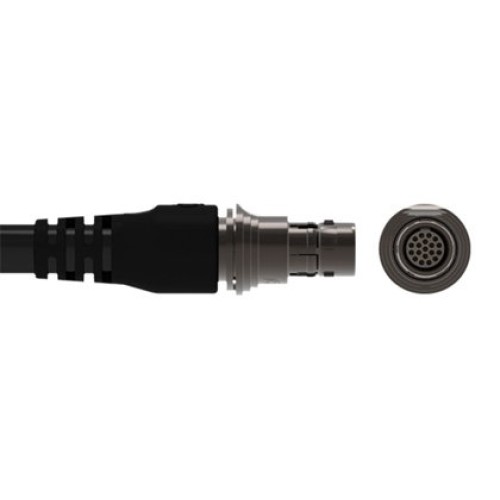

The rugged, compact, lightweight, sealed UltiMate connectivity solutions are ideally suited to withstand a variety of severe environmental, industrial and chemical conditions. They have extremely robust mechanical keying, IP68/69 sealing even unmated (tested on request up to 120m submersion for 24 hours), 360° EMC shielding using a grounding contact ring. They offer exceptional shock, vibration and corrosion resistance, and can operate at temperatures from -55°C to 135°C.

KEY FEATURES

  • Mating cycles >10,000
  • Hermetic
  • One-piece body
  • Configurations: 2-42 contacts
  • 1,000 hours salt-mist spray
  • Operating temperature range: -55°C to +135°C
  • Tested to MIL-Specs
  • High shock and vibration resitance
  • 360° EMC shielding
  • Blind mating
  • Color overmolding available

ULTIMATE SIZE 07-18


POWER CONFIGURATION

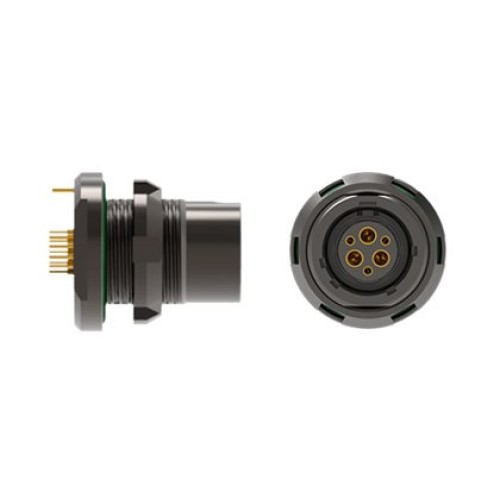

The ultra-rugged, compact Fischer UltiMate™ Series includes two power configurations: 2x contacts of 26 Amps each or 3x contacts of 16 Amps each, both combined with 3x signal contacts offering even more flexibility, improving the power supply alongside signals and enabling the full integration of UltiMate connectors into all applications.


Key features and benefits

Durability

Reliability

  • Sealing IP68 even unmated
  •  Hermetic
  •  One piece body
  •  10,000 mating cycles

High performance shielding

Shielding
Shielding

  •  360° EMC shielding
  •  Grounding contact ring
  •  Easy cable assembly



Rugged design for harsh environments

Shielding
Shielding

  •  High shock & vibration resistance
  •  Operating temperature: -55°C to +135°C
  •  High corrosion resistance (1,000 h)
  •  Blind mating

Highly configurable

highly configurable connector

  •  Wide range of configurations, signal and power (NEW)
  •  Miniature & ultralight design
  •  Color overmolding available
  •  Crimp and solder contacts

Ruggedized solutions for extreme environments

Fischer UltiMate Series - Underwater
Extreme applications depend on data reliability, require rugged connectors sealed to IP68/IP69 to protect devices from environmental interference, or hermetic vacuum and pressurized equipment to prevent gas leaks.

The Fischer UltiMate™ Series meet IP68/69 requirements to guarantee safe and efficient operations in:

  • underwater applications involving immersion over long periods
  • oil & gas applications exposed to high pressures, shock and vibration, where sealing needs must be combined with high-strength mechanical design
