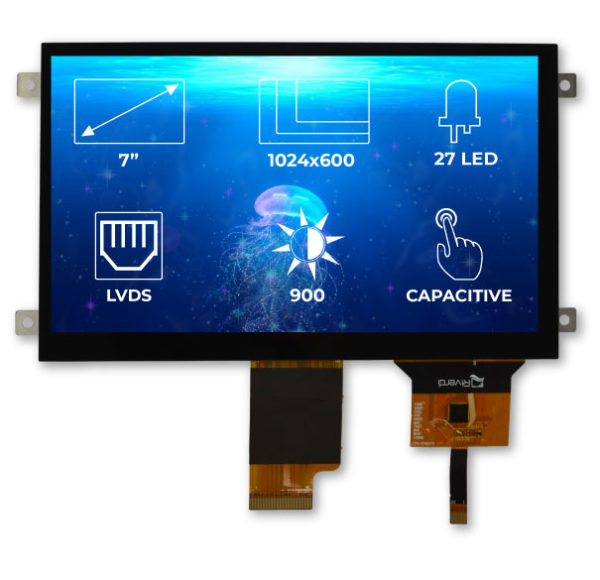

RiTFT-70H-LV-CAP-FR is a high-resolution, high-brightness 7″ TFT display with an LVDS interface, a capacitive touchscreen, and a metal mounting frame.

It offers a resolution of 1024x600px.

What makes the RVT70AQLFWC00 a great display?

The RiTFT-70H-LV-CAP-FR is a high-quality Riverdi 7’’ TFT display module with high brightness. It features a backlight of 27 white LEDs. Typical surface luminance is 900cd/m2.

The full viewing angle allows the user a natural and intuitive way to interact with the display.

Main features:

  • 1024x600px resolution
  • 7’’ TFT display
  • Capacitive touch screen
  • LVDS interface
  • Metal mounting frame
  • High brightness
  • Low power consumption

Touch Screen.

Reacts to the slightest touch

TFT display module with a capacitive touchscreen. These types of screens are extremely touch-sensitive and allow for clear and bright images. We recommend a capacitive touchscreen display if your application needs multi-touch, gestures, and high-precision.

Capacitive touchscreens react to the slightest touch, and no pressure is needed for detection.

Ürün Detayları

  • Controller: None
  • Interface: LVDS
  • Resolution: 1024x600
  • Size: 7.0"
  • Touch Screen: Capacitive
