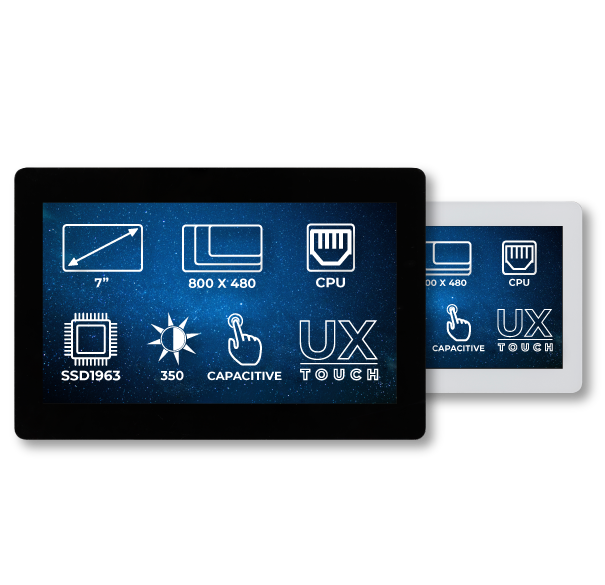

A Riverdi 7.0″ TFT display with a projected capacitive touchscreenand a decorative cover glass that comes in two versions: black and white.
The 800×480 resolution provides crisp and clear colors, while the screen is driven by the powerful SSD1963 graphics controller.
The display features the standard CPU interface.
What makes the RVT70UQSNWC0x a great display?
The RVT70UQSNWC0x is a high-quality Riverdi 4.3’’ TFT display module with a specially designed capacitive touchscreen. These types of screens are extremely touch-sensitive and allow for clear and bright images. We recommend a capacitive touchscreen display if your application needs multi-touch, gestures, and high-precision.
The 12:00 o’clock viewing angle allows the user a natural and intuitive way to interact with the display.
The RVT70UQSNWC0x has a built-in LED inverter.
For more information about the RVT70UQSNWC0x see the documentation section.
Reacts to the slightest touch
TFT display module with a capacitive touchscreen. These types of screens are extremely touch-sensitive and allow for clear and bright images. We recommend a capacitive touchscreen display if your application needs multi-touch, gestures, and high-precision.
Capacitive touchscreens react to the slightest touch, and no pressure is needed for detection.

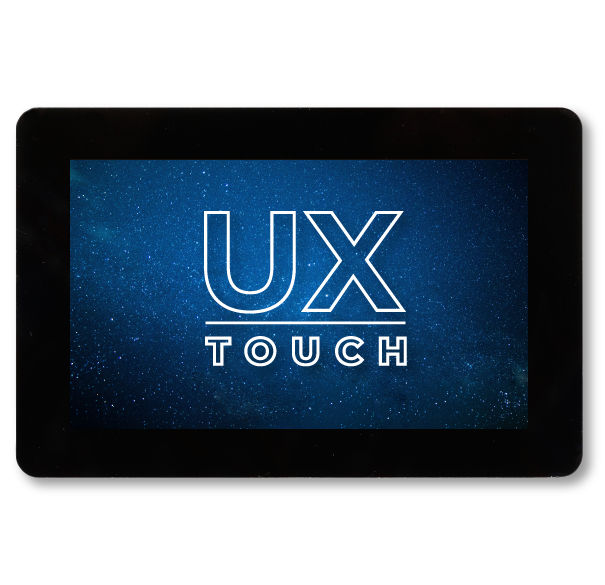

Sleek design without any holes in the housing
A uxTouch display is a specially designed LCD TFT display which has a Projected Capacitive Touch (PTC). They are the perfect choice for your project if you intend to have an interactive design and technology, thanks to their absolute flat design and multi-touch feature.
As you can see they feature a modern and sleek design without any holes in the housing.
On the technical side, they are a great option for industrial spaces, since there is no dirt accumulation possible. They also feature chemically strengthened glass, which has increased durability, thanks to the process of ion-exchange. They are easy to assemble, easy to clean and easy to implement into your design.

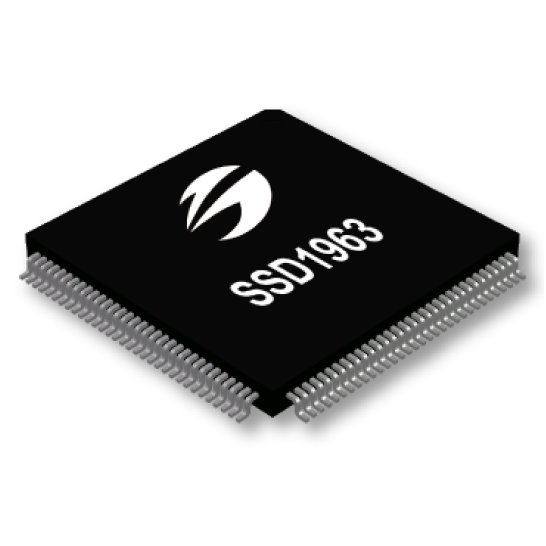

A powerful graphics controller
If your project requires a more complex execution the SOLOMON SSD1963 graphic controller is a great choice. The Solomon SSD1963 has 1 MB memory which you can use to write all your display data. It offers standard features like programmable brightness, contrast and saturation control, as well as dynamic Backlight Control (DBC) over the PWM signal.
In case you need low power consumption, the controller offers a deep sleep mode. For more information about the SOLOMON SSD1963 graphic controller, see the data sheet.
|RVT70UQSNWC00||Black cover glass, 0.2mm DST|
|RVT70UQSNWC01||Black cover glass, 0.5 mm DST|
|RVT70UQSNWC02||Black cover glass, no DST|
|RVT70UQSNWC03||White cover glass, 0.2mm DST|
|RVT70UQSNWC04||White cover glass, 0.5 mm DST|
|RVT70UQSNWC05||White cover glass, no DST|
