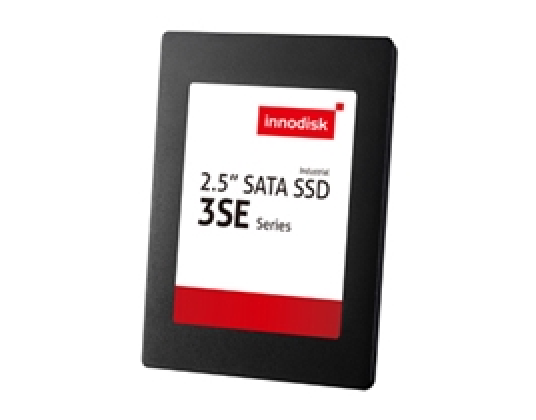

2.5" SATA SSD 3SE
Ürün Tanımı
Product Features
- 2.5” SATA III soultion for industrial field
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Enhanced power cycling management
Overview:
Innodisk 2.5” SATA SSD 3SE is SATA III 6Gb/s Flash based disk, which delivers excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. 3SE 2.5” SSD not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.
Specifications:
| Model Name | 2.5" SATA SSD 3SE |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Type | 2.5" |
| Capacity | 4GB~256GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 490/430 |
| Max. Power Consumption | 3.0 W (5V x 600 mA ) |
| Thermal Sensor | ST- Optional / WT- Default |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| iCell | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 69.85 x 99.85 x 9.20 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
Order Information:
| Operation Temp. | Standard Grade (0°C ~ +70°C) | Industrial Grade (-40°C ~ +85°C) |
| 4GB | DES25-04GD07AC1DB | DES25-04GD07AW1DB |
| 8GB | DES25-08GD06SCCQB | DES25-08GD06SWCQB |
| 16GB | DES25-16GD06SCCQB | DES25-16GD06SWCQB |
| 32GB | DES25-32GD06SCCQB | DES25-32GD06SWCQB |
| 64GB | DES25-64GD06SCCQB | DES25-64GD06SWCQB |
| 128GB | DES25-A28D06SCCQB | DES25-A28D06SWCQB |
| 256GB | DES25-B56D06SCCQB | DES25-B56D06SWCQB |
| 512GB | DES25-C12D06SCCQT | DES25-C12D06SWCQT |
| 2GB (24nm) | DES25- 02GD07SC1SB | DES25- 02GD07SW1SB |
| 4GB (24nm) | DES25- 04GD07SC1DB | DES25- 04GD07SW1DB |
| 8GB (24nm) | DES25- 08GD06AC1QB | DES25- 08GD06AW1QB |
