Ürün Tanımı

Product Features
  • 2.5” SATA Slim SATA III solution for industrial field
  • High IOPS
  • iSMART disk health monitoring
  • iPower Guard for protecting unstable start up and shut down.
  • iData Guard for abnormal power failure


Overview:

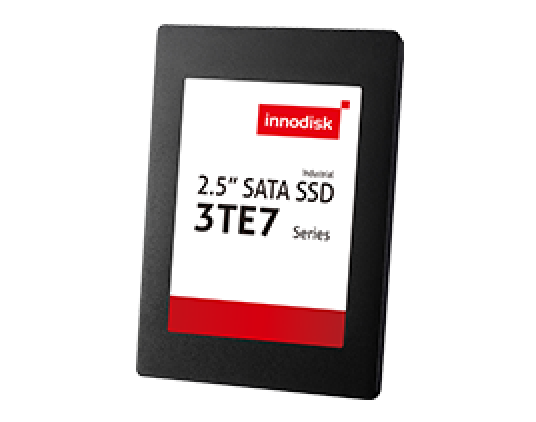

Innodisk 2.5” SATA SSD 3TE7 is SATA III 6.0 Gb/s flash based disk, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodik signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TE7 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of 2.5” SATA SSD 3TE7 for industrial applications.

Specifications:

Model Name2.5” SATA SSD 3TE7
InterfaceSATA III 6.0 Gb/s
Flash Type3D TLC
3D NAND Type64-layer | 96-layer
Capacity32GB~2TB | 64GB~1TB
Sequential R/W (MB/sec, max.)550 / 510 | 560/510
Max. Power Consumption3.6W | 1.8W
Max. Channels4
Thermal SensorY
H/W Write ProtectOptional
ATA SecurityY
S.M.A.R.T.Y
Dimension (WxLxH/mm)69.8 x 100.0 x 6.8
Vibration20G@7~2000Hz
Shock1500G@0.5ms
MTBF>3 million hours
Storage Temperature-55°C ~ +95°C
Operation TemperatureStandard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C

Order Information:

Operation Temp. Standard Grade (0°C ~ +70°C) Industrial Grade (-40°C ~ +85°C)
32GB DES25-32GDK1EC3SF DES25-32GDK1EW3SF
64GB DES25-64GDK1EC3DF DES25-64GDK1EW3DF
128GB (4 Channels) DES25-A28DK1%C3QF DES25-A28DK1%W3QF
128GB (2 Channels) DES25-A28DK1%C*DF DES25-A28DK1%W3DF
256GB DES25-B56DK1%C*QF DES25-B56DK1%W*QF
512GB DES25-C12DK1%C*QF DES25-C12DK1%W*QF
1TB DES25-01TDK1%C*QF DES25-01TDK1%W*QF
2TB DES25-02TDK1%C*QF DES25-02TDK1%W*QF
%. E: 64 layers 3D TLC; G: 96 layers 3D TLC; K: 112 layers 3D TLC
*. PCB version control


Ürün Detayları

  • Flash Type: 3D TLC
  • Interface: SATA
  • Kapasite: 1TB, 32GB, 64GB, 128GB, 256GB, 512GB, 2TB
  • Size Type: 2.5"
