INP3010

Ürün Tanımı

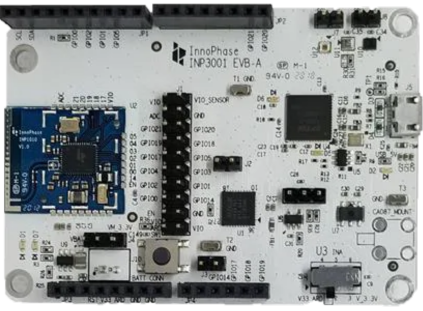

The INP3010/INP3011 EVB-A Development Board includes everything needed for evaluating the Talaria TWO module’s performance and capabilities, The boards can also be used o complete initial system integration and development.

Features of the EVB-A hardware include:

• Arduino UNO format interface board with mounted INP1010 or INP1011 for easy evaluation in stand-alone mode or in conjunction with an external MCU
• Integrated Pressure/Humidity, Temperature and Light sensors for prototyping. Other sensor connection possible through available I2C or SPI ports.
• Pre-compiled software binaries for quick evaluation of the modules key performance specifications
• USB connectivity for power, loading programs into RAM, storing programs in embedded Flash memory, and terminal message printout
• Connection to available GPIO through central header pins or through Arduino header pins at the board edge
• Antenna connections available directly on the INP1010/11 modules
• Power supplied from USB, external Arduino board or from optional battery connection
• Port available for direct measurement of module current consumption

Additional EVB-A Feature: Host MCU Interface Package for STM32 Nucleo Development Boards

Certain designs require a main MCU with specialized, high performance processing and high number of peripheral interfaces plus wireless networking for data and cloud connectivity from an external chipset. In these Hosted Mode scenarios, the Talaria TWO Module can be Serial-to-Wireless device providing Wi-Fi and BLE data connections while concurrently managing the IP networking stack.

InnoPhase has developed a self-contained application that runs on the Talaria TWO module and associated host interface drivers that run on the STM32L4 MCU. The two applications allow the MCU host to communicate with the Talaria TWO module over serial connection, either SPI or UART, and simplifies the Talaria TWO control commands to straightforward MCU function calls. Both applications for the Talaria TWO module and the STM32L4 MCU are available as part of the evaluation Software Package download below.

Includes support for either the ST NUCLEO-L433RC or NUCELO-L4A6ZG platforms. The L4A6ZG is used when an encrypted serial connection between the Host MCU and Talaria TWO is required.

ST NUCLEO-L433RC (bottom) with INP3010 EVB-A (top)

Documentation & Software

Documents and software available for public download. These files will enable an initial evaluation of the Talaria TWO modules power consumption and throughput performance.

To start your evaluation, please purchase an INP3010 or INP3011 evaluation kit. Then download our documentation and evaluation software package to start programming the board to test various functional capabilities of the Talaria TWO modules.

Once you are ready to start an in-depth development, the software development kit (SDK), additional software examples and more detailed documentation is available within our private Customer Portal. Please go to our Customer Portal Registration page for more information on how to register and gain access to the additional content.

Evaluation Software

(Version 2.1.2, Release Date 2-Dec-2020, 277MB)

The software Included in a downloadable .zip file are various evaluation binaries and associated programming tool for the INP3010/INP3011 EVB-A boards. Details about the software are below:

• I-CUBE-T2-STW Host API (MCU, Software Binary) and hapi_demo.elf (Talaria TWO, Serial-to-Wireless, Software Binary)
  These applications provide an open or encrypted serial connection between a STM32L4 MCU and the Talaria TWO modules over SPI or UART.
• IPERF3.elf (Software Binary)
  This application can be used to evaluate the data throughput performance of the Talaria TWO modules.  See the User Guide for MPD and iPerf3 Applications GUI document above for more information.
• Multi-Purpose Demo T2_MPD.elf (Software Binary)
  This application can be used to evaluate key functionality of the Talaria TWO modules, including current consumption for different Wi-Fi listen intervals, data transmission over various protocols and other optimization settings.  See the User Guide for MPD and iPerf3 Applications GUI document above for more information.
• Download Tool (Executable)
  This tool is used to program the INP3010/INP3011 evaluation boards with the IPERF and Multi-Purpose Demo applications.  It is included as an executable for both Linux and Windows.  See the User Guide for MPD and iPerf3 Applications GUI document above for more information.

Software binaries and programming tools for the INP3010/INP3011 are available for free download on the InnoPhase website.
