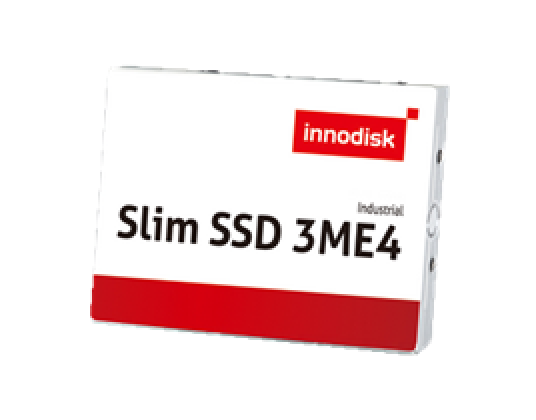

Slim SSD 3ME4
Ürün Tanımı
Product Features
- SATA III solution for industrial field
- Exclusive L³ architecture
- DRAM-less, 100% data integrity
- Excellent random performance
- Supports TRIM/NCQ/SMART
- Built in iData Guard
- Designed with LDPC ECC engine
Overview:
Innodisk Slim SSD 3ME4 is characterized by L³ architecture with the latestSATA III (6.0GHz) Marvell NAND controller. L² architecture multiplied by LDPC (Low Density Parity Check) is Innodisk’s exclusive L³ architecture. L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability. Innodisk Slim SSD 3ME4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
Specifications:
| Model Name | Slim SSD 3ME4 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | 1.8" |
| Capacity | 8GB~256GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 530/210 |
| Max. Power Consumption | 0.8W (5V x 160 mA ) |
| Thermal Sensor | Y |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| iCell | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 69.85 x 50.0 x 9.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
Order Information:
| Operation Temp. | Standard Grade (0°C ~ +70°C) | Industrial Grade (-40°C ~ +85°C) |
| 8GB | DEMLM-08GM41BC1SC | DEMLM-08GM41BW1SC |
| 16GB | DEMLM-16GM41BC1DC DEMLM-16GM41BC1SC |
DEMLM-16GM41BW1DC DEMLM-16GM41BW1SC |
| 32GB | DEMLM-32GM41BC1DC | DEMLM-32GM41BW1DC |
| 64GB | DEMLM-64GM41BC1DC | DEMLM-64GM41BW1DC |
| 128GB | DEMLM-A28M41BC1DC | DEMLM-A28M41BW1DC |
| 256GB | DEMLM-B56M41BC1DC | DEMLM-B56M41BW1DC |
